Description

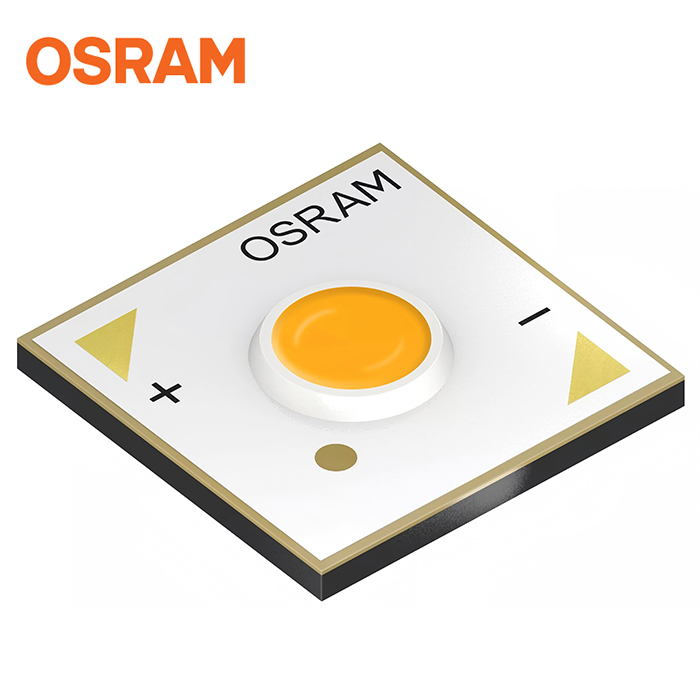

SOLERIQ™ S 5 GW KACCBB.GM
The SOLERIQ™ S products were specifically designed for applications requiring large flux packages out of a compact area.
Applications
– Indoor Lighting
Features
– Package: Chip-on-Board
– Typ. Radiation: 120°
– Color temperature: 2700K – 5000K
– CRI: 96 (min.), 97 (typ.)
– ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
– Luminous Flux: typ. 564 lm @ 3000 K, 25 °C
– Luminous efficacy: typ. 105 lm/W @ 3000 K, 25 °C
| Emission Color | White | CRI | 96 |
| Power | 5.3 W (High) | Beam Angle | ∢ Typical 110° |
| Dimensions | l Typical 13.3 mm
w Typical 13.3 mm |
Brightness | Typical ΦV: 565 lm Typical IV: 219 cd Typical ΦE: 2070 mW Typical IE: 805 mW/sr |
| Operating Temperature | Top Minimum -40°C/Top Maximum 105°C |
| Product Category | Description | Order Code |
|---|---|---|
| GW KACCBB.GM-A1-27A2D2 | ΦV = 521.0 … 575.0 lm, 2700 K (IF = 150 mA) | Q65113A7107 |
| GW KACCBB.GM-A2-30A2D2 | ΦV = 536.0 … 592.0 lm, 3000 K (IF = 150 mA) | Q65113A7105 |
| GW KACCBB.GM-A3-35A2D2 | ΦV = 578.0 … 638.0 lm, 3500 K (IF = 150 mA) | Q65113A7106 |
| GW KACCBB.GM-A4-40A2D2 | ΦV = 597.0 … 659.0 lm, 4000 K (IF = 150 mA) | Q65113A7104 |
| GW KACCBB.GM-A4-50A2D2 | ΦV = 597.0 … 659.0 lm, 5000 K (IF = 150 mA) | Q65113A9297 |
