Description

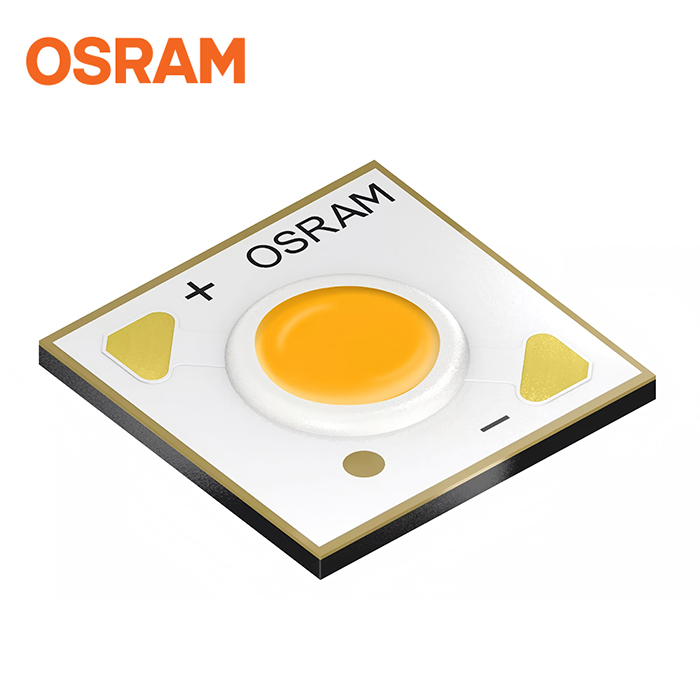

SOLERIQ® S 6 GW KADEBA.CM
The SOLERIQ® S products were specifically designed for appli- cations requiring large flux packages out of a compact area.
Applications
– Indoor Lighting
Features
– Package: Chip-on-Board
– Typ. Radiation: 120° (Lambertian emitter)
– Color temperature: 2700K – 5000K
– CRI: 90 (min.)
– ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
– Luminous Flux: typ. 677 lm @ 3000 K, 25 °C
– Luminous efficacy: typ. 131 lm/W @ 3000 K, 25 °C
| Emission Color | White | CRI | 90 |
| Power | 5.2 W (High) | Beam Angle | ∢ Typical 120° |
| Dimensions | l Typical 13.3 mm w Typical 13.3 mm h Typical 1.5 mm |
Brightness | Typical ΦV: 767 lm Typical IV: 264 cd Typical ΦE: 2580 mW Typical IE: 889 mW/sr Typical ΦP: 3.79 µmol/s |
| Operating Temperature | Top Minimum -40°C/Top Maximum 105°C |
| Product Category | Description | Order Code |
|---|---|---|
| GW KADEBA.CM-PSQS-27S3 | ΦV = 563.0 … 970.0 lm, 2700 K (IF = 150 mA) | Q65113A2144 |
| GW KADEBA.CM-PTQS-30S3 | ΦV = 610.0 … 970.0 lm, 3000 K (IF = 150 mA) | Q65113A0931 |
| GW KADEBA.CM-PTQS-35S3 | ΦV = 610.0 … 970.0 lm, 3500 K (IF = 150 mA) | Q65113A0940 |
| GW KADEBA.CM-PTQS-40S3 | ΦV = 610.0 … 970.0 lm, 4000 K (IF = 150 mA) | Q65113A0939 |
| GW KADEBA.CM-PTQS-50S3 | ΦV = 610.0 … 970.0 lm, 5000 K (IF = 150 mA) | Q65113A0938 |
