Description

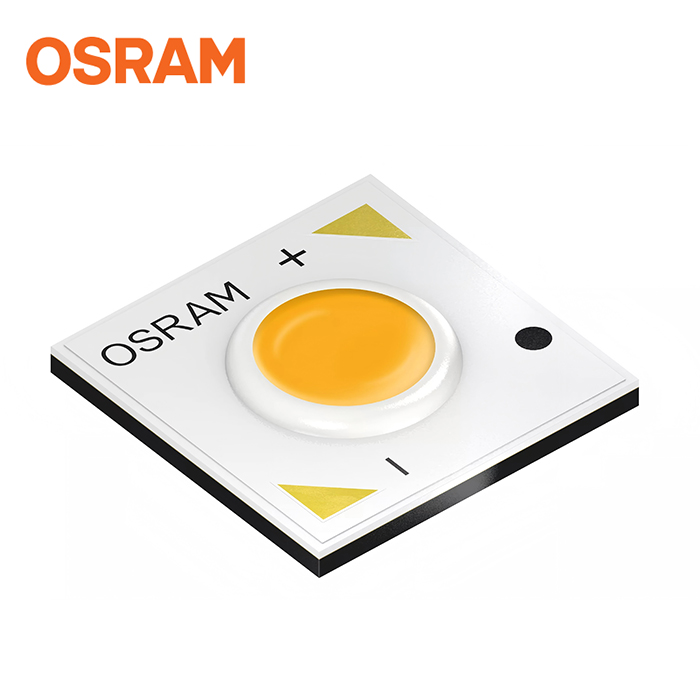

SOLERIQ™ S 6 GW KADEBB.GM
The SOLERIQ™ S products were specifically designed for applications requiring large flux packages out of a compact area.
Applications
– Indoor Lighting
Features
– Package: Chip-on-Board
– Typ. Radiation: 120°
– Color temperature: 2700K – 5000K
– CRI: 96 (min.), 97 (typ.)
– ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
– Luminous Flux: typ. 824 lm @ 3000 K, 25 °C
– Luminous efficacy: typ. 117 lm/W @ 3000 K, 25 °C
| Emission Color | White | CRI | 96 |
| Power | 7.0 W (Ultra High) | Beam Angle | ∢ Typical 110° |
| Dimensions | l Typical 13.3 mm w Typical 13.3 mm h Typical 1.5 mm |
Brightness | Typical ΦV: 845 lm Typical IV: 319 cd Typical ΦE: 3080 mW Typical IE: 1160 mW/sr |
| Operating Temperature | Top Minimum -40°C/Top Maximum 105°C |
| Product Category | Description | Order Code |
|---|---|---|
| GW KADEBB.GM-B1-27A2D2 | ΦV = 737.0 … 815.0 lm, 2700 K (IF = 200 mA) | Q65113A7084 |
| GW KADEBB.GM-B11-50A2D2 | ΦV = 860.0 … 960.0 lm, 5000 K (IF = 200 mA) | Q65113A9298 |
| GW KADEBB.GM-B2-30A2D2 | ΦV = 783.0 … 865.0 lm, 3000 K (IF = 200 mA) | Q65113A7082 |
| GW KADEBB.GM-B2-35A2D2 | ΦV = 783.0 … 865.0 lm, 3500 K (IF = 200 mA) | Q65113A7081 |
| GW KADEBB.GM-B3-40A2D2 | ΦV = 814.0 … 900.0 lm, 4000 K (IF = 200 mA) | Q65113A7083 |
