Description

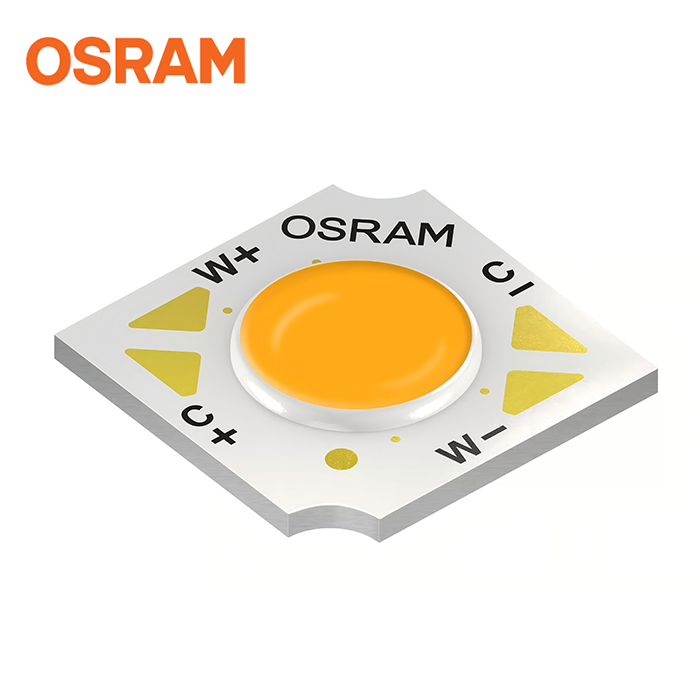

SOLERIQ® S 6 GW KADEBT.CM
The SOLERIQ® S products were specifically designed for applications requiring large flux packages out of a compact area.
Applications
– Indoor Lighting
Features
– Package: Chip-on-Board
– Typ. Radiation: 120° (Lambertian emitter)
– CRI: 90 (min.)
– ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
– Color temperature: 2700K – 6500K
– Luminous flux: typ. 733 lm @ 4000 K; typ. 745 lm @ 6500 K
– Luminous efficacy: typ. 134 lm/W @ 4000 K; typ. 136 lm/W @ 6500 K
| Emission Color | White | CRI | 90 |
| Power | Two color temperatures are 5.5 W (High) | Beam Angle | ∢ Typical 120° |
| Dimensions | l Typical 13.3 mm w Typical 13.3 mm h Typical 1.5 mm |
Brightness | Typical ΦV: 740 lm Typical IV: 253 cd Typical ΦE: 2510 mW Typical IE: 856 mW/sr |
| Operating Temperature | Top Minimum -40°C/Top Maximum 105°C |
| Product Category | Description | Order Code |
|---|---|---|
| GW KADEBT.CM-A6+A5-40S3+27S3 | ● ΦV = 680.0 … 785.0 lm (IF = 150 mA), 2700 K ● ΦV = 595.0 … 690.0 lm (IF = 150 mA), 4000 K |
Q65113A7571 |
| GW KADEBT.CM-A7+A5-65S3+27S3 | ● ΦV = 690.0 … 800.0 lm (IF□=□150□mA), 2700 K ● ΦV = 595.0 … 690.0 lm (IF□=□150□mA), 6500 K |
Q65113A7573 |
