Description

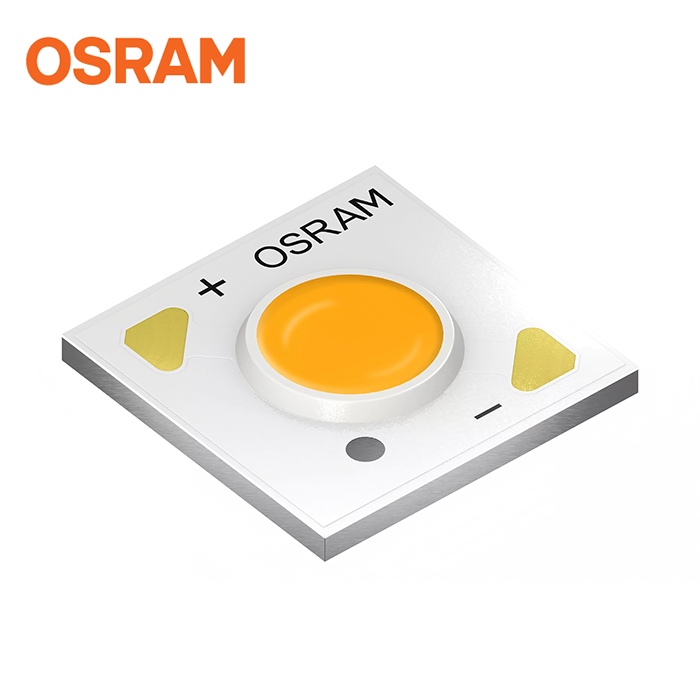

SOLERIQ® S 6 GW KADJBA.CM
The SOLERIQ® S products were specifically designed for applications requiring large flux packages out of a compact area.
Applications
– Indoor Lighting
Features
– Package: Chip-on-Board
– Typ. Radiation: 120° (Lambertian emitter)
– Color temperature: 2700K – 5000K
– CRI: 90 (min.), R9: 50 (min.)
– ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
– Luminous Flux: typ. 2150 lm @ 3000 K, 25 °C
– Luminous efficacy: typ. 97 lm/W @ 3000 K, 25 °C
| Emission Color | White | CRI | 90 |
| Power | 22.0 W (Ultra High) | Beam Angle | ∢ Typical 120° |
| Dimensions | l Typical 13.3 mm w Typical 13.3 mm h Typical 1.5 mm |
Brightness | Typical ΦV: 2200 lm Typical IV: 749 cd Typical ΦE: 7610 mW Typical IE: 2600 mW/sr |
| Operating Temperature | Top Minimum -40°C/Top Maximum 105°C |
| Product Category | Description | Order Code |
|---|---|---|
| GW KADJBA.CM-SPST-27AB | ΦV = 1800 … 2590 lm, 2700 K (IF = 600 mA) | Q65113A4083 |
| GW KADJBA.CM-SPST-30AB | ΦV = 1800 … 2590 lm, 3000 K (IF = 600 mA) | Q65113A4082 |
| GW KADJBA.CM-SPST-35AB | ΦV = 1800 … 2590 lm, 3500 K (IF = 600 mA) | Q65113A4081 |
| GW KADJBA.CM-SPST-40AB | ΦV = 1800 … 2590 lm, 4000 K (IF = 600 mA) | Q65113A4080 |
| GW KADJBA.CM-SPST-50AB | ΦV = 1800 … 2590 lm, 5000 K (IF = 600 mA) | Q65113A4079 |
