Description

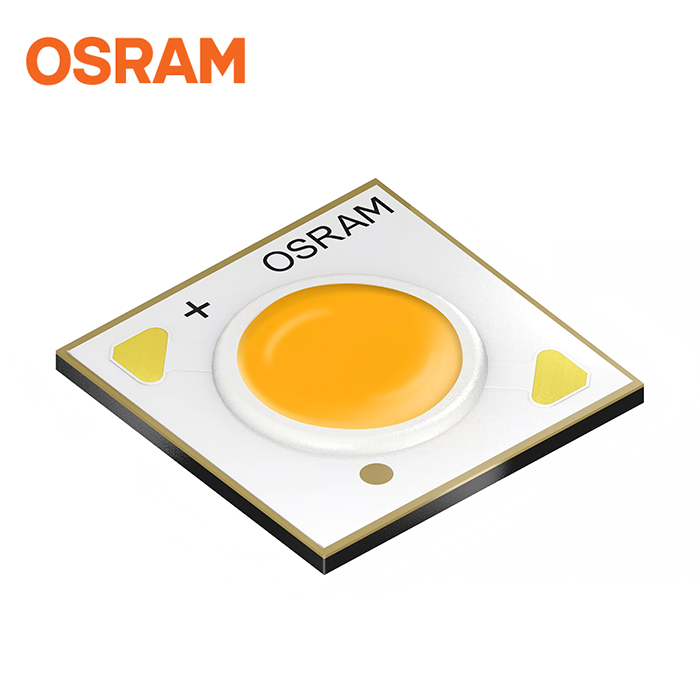

SOLERIQ® S 9 GW KAFFBA.CM
The SOLERIQ® S products were specifically designed for applications requiring large flux packages out of a compact area.
Applications
– Indoor Lighting
Features
– Package: Chip-on-Board
– Typ. Radiation: 120° (Lambertian emitter)
– Color temperature: 2700K – 5000K
– CRI: 90 (min.)
– ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
– Luminous Flux: typ. 1356 lm @ 3000 K, 25 °C
– Luminous efficacy: typ. 127 lm/W @ 3000 K, 25 °C
| Emission Color | White | CRI | 90 |
| Power | 11.0 W (Ultra High) | Beam Angle | ∢ Typical 110° |
| Dimensions | l Typical 15.8 mm w Typical 15.8 mm h Typical 1.5 mm |
Brightness | Typical ΦV: 1530 lm Typical IV: 530 cd Typical ΦE: 5320 mW Typical IE: 1840 mW/sr |
| Operating Temperature | Top Minimum -40°C/Top Maximum 105°C |
| Product Category | Description | Order Code |
|---|---|---|
| GW KAFFBA.CM-RPSP-27S3 | ΦV = 1120 … 1940 lm, 2700 K (IF = 300 mA) | Q65113A2143 |
| GW KAFFBA.CM-RQSP-30S3 | ΦV = 1210 … 1940 lm, 3000 K (IF = 300 mA) | Q65113A0937 |
| GW KAFFBA.CM-RQSP-35S3 | ΦV = 1210 … 1940 lm, 3500 K (IF = 300 mA) | Q65113A0936 |
| GW KAFFBA.CM-RQSP-40S3 | ΦV = 1210 … 1940 lm, 4000 K (IF = 300 mA) | Q65113A0935 |
| GW KAFFBA.CM-RQSP-50S3 | ΦV = 1210 … 1940 lm, 5000 K (IF = 300 mA) | Q65113A0934 |
