Description

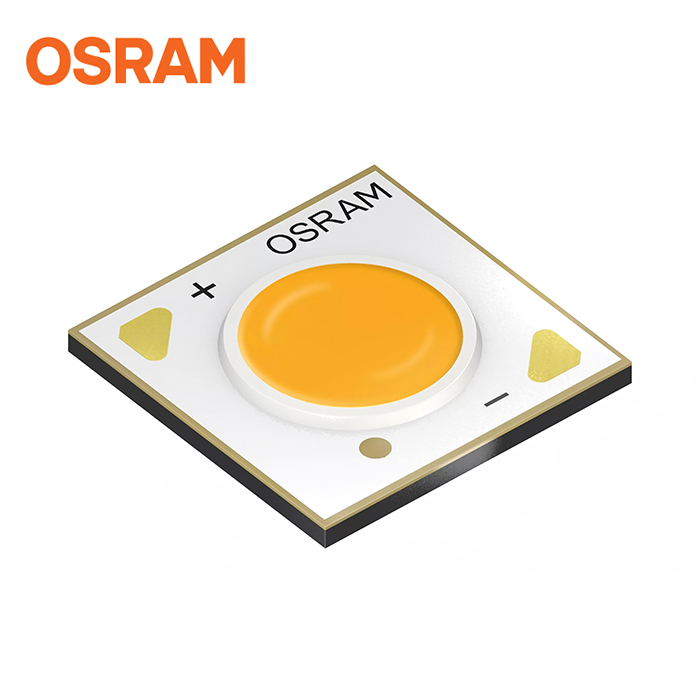

SOLERIQ™ S 9 GW KAFFBB.GM
The SOLERIQ™ S products were specifically designed for applications requiring large flux packages out of a compact area.
Applications
– Indoor Lighting
Features
– Package: Chip-on-Board
– Typ. Radiation: 120°
– Color temperature: 2700K – 5000K
– CRI: 96 (min.), 97 (typ.)
– ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
– Luminous Flux: typ. 1262 lm @ 3000 K, 25 °C
– Luminous efficacy: typ. 120 lm/W @ 3000 K, 25 °C
| Emission Color | White | CRI | 96 |
| Power | 11.0 W (Ultra High) | Beam Angle | ∢ Typical 110° |
| Dimensions | l Typical 15.8 mm w Typical 15.8 mm h Typical 1.15 mm |
Brightness | Typical ΦV: 1290 lm Typical IV: 495 cd Typical ΦE: 4720 mW Typical IE: 1810 mW/sr |
| Operating Temperature | Top Minimum -40°C/Top Maximum 105°C |
| Product Category | Description | Order Code |
|---|---|---|
| GW KAFFBB.GM-D1-27A2D2 | ΦV = 1137 … 1257 lm, 2700 K (IF = 300 mA) | Q65113A7103 |
| GW KAFFBB.GM-D13-50A2D2 | ΦV = 1340 … 1490 lm, 5000 K (IF = 300 mA) | Q65113A9300 |
| GW KAFFBB.GM-D2-30A2D2 | ΦV = 1199 … 1325 lm, 3000 K (IF = 300 mA) | Q65113A7102 |
| GW KAFFBB.GM-D3-35A2D2 | ΦV = 1261 … 1393 lm, 3500 K (IF = 300 mA) | Q65113A7101 |
| GW KAFFBB.GM-D4-40A2D2 | ΦV = 1314 … 1452 lm, 4000 K (IF = 300 mA) | Q65113A7100 |
