Description

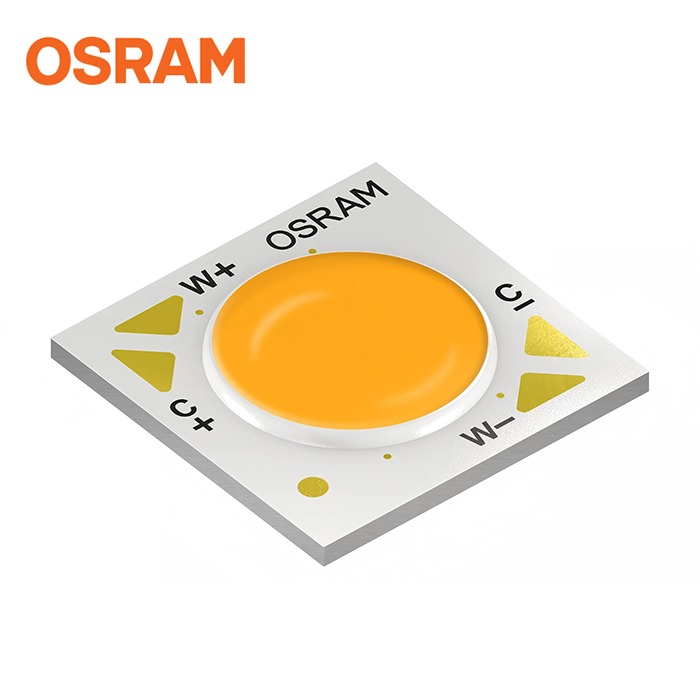

SOLERIQ® S 9 GW KAFGBT.CM
The SOLERIQ® S products were specifically designed for applications requiring large flux packages out of a compact area.
Applications
– Indoor Lighting
Features
– Package: Chip-on-Board
– Typ. Radiation: 120° (Lambertian emitter)
– CRI: 90 (min.)
– ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
– Color temperature: 2700K – 6500K
– Luminous flux: typ. 1480 lm @ 4000 K; typ. 1495 lm @ 6500 K
– Luminous efficacy: typ. 135 lm/W @ 4000 K; typ. 137 lm/W @ 6500 K
| Emission Color | White | CRI | 90 |
| Power | 11.0 W (Ultra High) | Beam Angle | ∢ Typical 120° |
| Dimensions | l Typical 15.8 mm w Typical 15.8mm h Typical 1.65 mm |
Brightness | Typical ΦV: 1490 lm Typical IV: 507 cd Typical ΦE: 5040 mW Typical IE: 1720 mW/sr |
| Operating Temperature | Top Minimum -40°C/Top Maximum 105°C |
| Product Category | Description | Order Code |
|---|---|---|
| GW KAFGBT.CM-C6+C5-40S3+27S3 | ● ΦV = 1375.0 … 1585.0 lm (IF□=□300□mA), 2700 K ● ΦV = 1210.0 … 1400.0 lm (IF□=□300□mA), 4000 K |
Q65113A7576 |
| GW KAFGBT.CM-C7+C5-65S3+27S3 | ● ΦV = 1390.0 … 1600.0 lm (IF = 300 mA), 2700 K ● ΦV = 1210.0 … 1400.0 lm (IF = 300 mA), 6500 K |
Q65113A7579 |
