Description

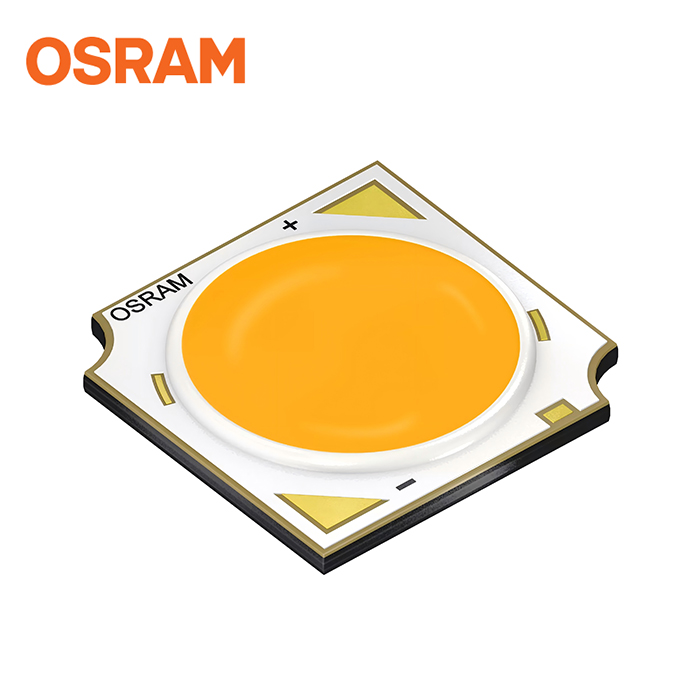

SOLERIQ™ S 9 GW KAFHB6.CM
The SOLERIQ™ S products were specifically designed for applications requiring large flux packages out of a compact area.
Applications
– Indoor Lighting
Features
– Package: Chip-on-Board
– Typ. Radiation: 120° (Lambertian emitter)
– Color temperature: 2700K – 4000K
– CRI: 90 (min.)
– ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
– Luminous Flux: typ. 1264 lm @ 3000 K, 85 °C
– Luminous efficacy: typ. 136 lm/W @ 3000 K, 85 °C
| Emission Color | White | CRI | 90 |
| Power | 9.3 W (Ultra High) | Beam Angle | ∢ Typical 120° |
| Dimensions | l Typical 13.5 mm w Typical 13.5 mm h Typical 1.4 mm |
Brightness | Typical ΦV: 1270 lm Typical IV: 426 cd Typical ΦE: 4340 mW Typical IE: 1450 mW/sr |
| Operating Temperature | Top Minimum -40°C/Top Maximum 105°C |
| Product Category | Description | Order Code |
|---|---|---|
| GW KAFHB6.CM-QURR-27S3 | ΦV = 1042 … 1400 lm, 2700 K (IF = 270 mA) | Q65112A9642 |
| GW KAFHB6.CM-RPRR-30S3 | ΦV = 1120 … 1400 lm, 3000 K (IF = 270 mA) | Q65113A0337 |
| GW KAFHB6.CM-RPRS-35S3 | ΦV = 1120 … 1500 lm, 3500 K (IF = 270 mA) | Q65113A0334 |
| GW KAFHB6.CM-RPRS-40S3 | ΦV = 1120 … 1500 lm, 4000 K (IF = 270 mA) | Q65113A0336 |
