Description

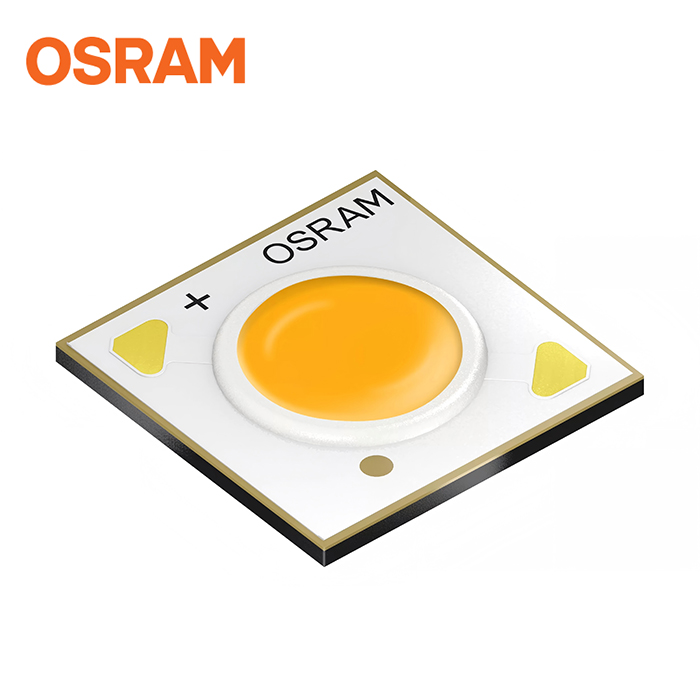

SOLERIQ® S 9 GW KAFHBA.CM
The SOLERIQ® S products were specifically designed for applications requiring large flux packages out of a compact area.
Applications
– Indoor Lighting
Features
– Package: Chip-on-Board
– Typ. Radiation: 120° (Lambertian emitter)
– Color temperature: 3000K – 5000K
– CRI: 90 (min.)
– ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
– Luminous Flux: typ. 2193 lm @ 3000 K, 25 °C
– Luminous efficacy: typ. 122 lm/W @ 3000 K, 25 °C
| Emission Color | White | CRI | 90 |
| Power | 18 W (Ultra High) | Beam Angle | ∢ Typical 120° |
| Dimensions | l Typical 15.8 mm w Typical 15.8 mm h Typical 1.5 mm |
Brightness | Typical ΦV: 2490 lm Typical IV: 860 cd Typical ΦE: 8590 mW Typical IE: 2970 mW/sr |
| Operating Temperature | Top Minimum -40°C/Top Maximum 105°C |
| Product Category | Description | Order Code |
|---|---|---|
| GW KAFHBA.CM-SQTP-30S3 | ΦV = 1940 … 3040 lm, 3000 K (IF = 500 mA) | Q65113A0933 |
| GW KAFHBA.CM-SQTP-35S3 | ΦV = 1940 … 3040 lm, 3500 K (IF = 500 mA) | Q65113A0932 |
| GW KAFHBA.CM-SQTP-40S3 | ΦV = 1940 … 3040 lm, 4000 K (IF = 500 mA) | Q65113A0953 |
| GW KAFHBA.CM-SQTP-50S3 | ΦV = 1940 … 3040 lm, 5000 K (IF = 500 mA) | Q65113A0952 |
