Description

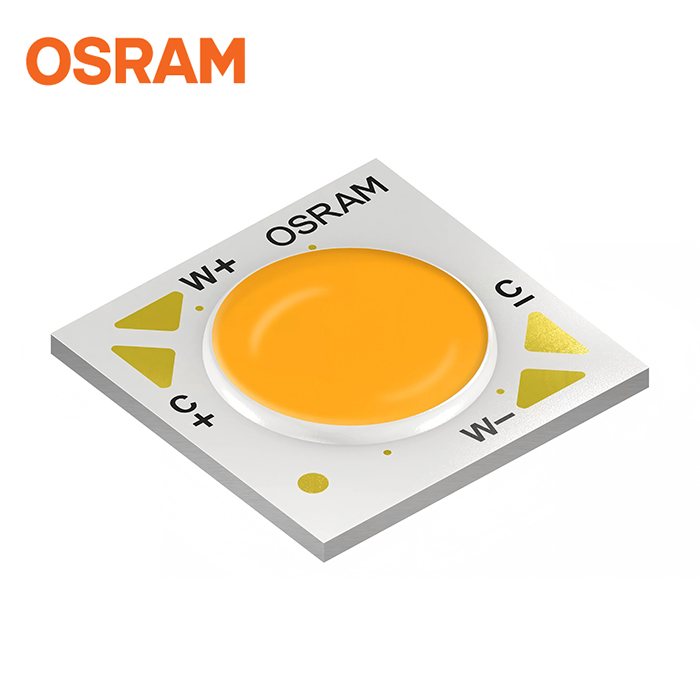

SOLERIQ® S 9 GW KAFHBT.CM
The SOLERIQ® S products were specifically designed for applications requiring large flux packages out of a compact area.
Applications
– Indoor Lighting
Features
– Package: Chip-on-Board
– Typ. Radiation: 120° (Lambertian emitter)
– CRI: 90 (min.)
– ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
– Color temperature: 2700K – 6500K
– Luminous flux: typ. 2300 lm @ 4000 K; typ. 2335 lm @ 6500 K
– Luminous efficacy: typ. 126 lm/W @ 4000 K; typ. 128 lm/W @ 6500 K
| Emission Color | White | CRI | 90 |
| Power | 18 W (Ultra High) | Beam Angle | ∢ Typical 120° |
| Dimensions | l Typical 15.8 mm w Typical 15.8 mm h Typical 1.65 mm |
Brightness | Typical ΦV: 2320 lm Typical IV: 792 cd Typical ΦE: 7690 mW Typical IE: 2630 mW/sr |
| Operating Temperature | Top Minimum -40°C/Top Maximum 105°C |
| Product Category | Description | Order Code |
|---|---|---|
| GW KAFHBT.CM-D6+D5-40S3+27S3 | ● ΦV = 2135.0 … 2465.0 lm (IF□=□500□mA),2700 K ● ΦV = 1805 … 2080 lm (IF□=□500□mA), 4000 K |
Q65113A7577 |
| GW KAFHBT.CM-D7+D5-65S3+27S3 | ● ΦV = 2170.0 … 2500.0 lm (IF = 500 mA),2700 K ● ΦV = 1805 … 2080 lm (IF = 500 mA), 6500 K |
Q65113A7574 |
