Description

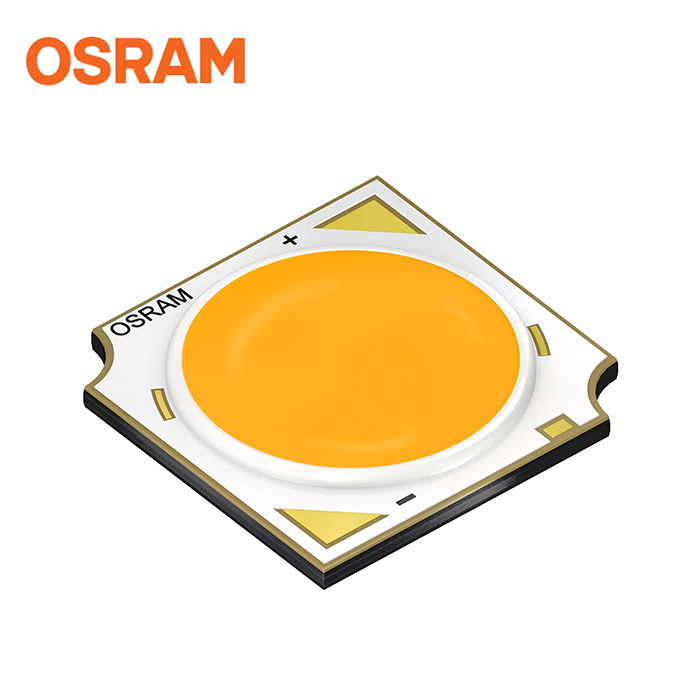

SOLERIQ™ S 9 GW KAFJB6.CM
The SOLERIQ™ S products were specifically designed for applications requiring large flux packages out of a compact area.
Applications
– Indoor Lighting
Features
– Package: Chip-on-Board
– Typ. Radiation: 120° (Lambertian emitter)
– Color temperature: 2700K – 4000K
– CRI: 90 (min.)
– ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
– Luminous Flux : typ. 1626 lm @ 3000 K, 85 °C
– Luminous efficacy : typ. 132 lm/W @ 3000 K, 85 °C
| Emission Color | White | CRI | 90 |
| Power | 12 W (Ultra High) | Beam Angle | ∢ Typical 120° |
| Dimensions | l Typical 13.5 mm w Typical 13.5 mm h Typical 1.4 mm |
Brightness | Typical ΦV: 1800 lm Typical IV: 620 cd Typical ΦE: 6120 mW Typical IE: 2110 mW/sr |
| Operating Temperature | Top Minimum -40°C/Top Maximum 105°C |
| Product Category | Description | Order Code |
|---|---|---|
| GW KAFJB6.CM-RTSQ-30S3 | ΦV = 1500 … 2100 lm, 3000 K (IF = 360 mA) | Q65113A1484 |
| GW KAFJB6.CM-RTSQ-40S3 | ΦV = 1500 … 2100 lm, 4000 K (IF = 360 mA) | Q65113A1483 |
| GWKAFJB6.CM-RTSQ-27S3 | ΦV = 1500 … 2100 lm, 2700 K (IF = 360 mA) | Q65113A7440 |
