Description

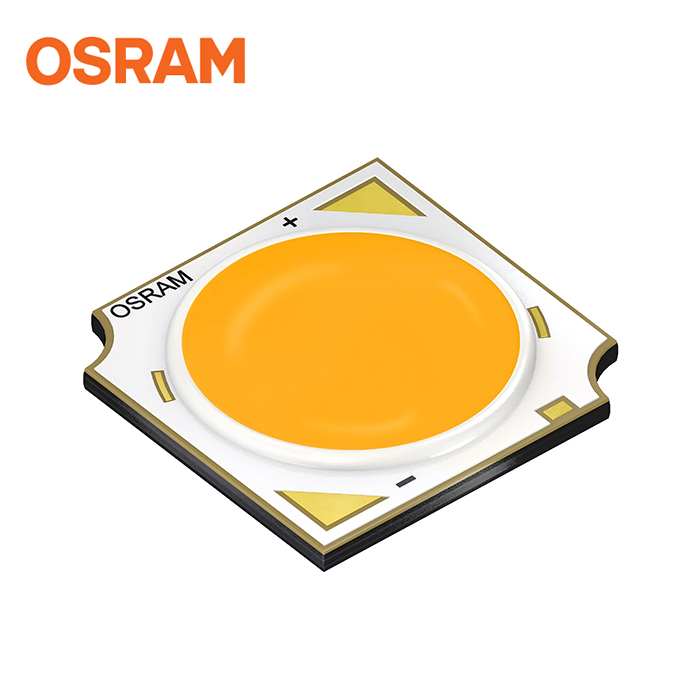

SOLERIQ™ S 9 GW KAFJB6.EM
The SOLERIQ™ S products were specifically designed for applications requiring large flux packages out of a compact area.
Applications
– Indoor Lighting
Features
– Package: Chip-on-Board
– Typ. Radiation: 120° (Lambertian emitter)
– Color temperature: 3000K – 6500K
– CRI: 80 (min.)
– ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
– Luminous Flux: typ. 1940 lm @ 3000 K, 85 °C
– Luminous efficacy: typ. 160 lm/W @ 3000 K, 85 °C
| Emission Color | White | CRI | 80 |
| Power | 12 W (Ultra High) | Beam Angle | ∢ Typical 120° |
| Dimensions | l Typical 13.5 mm w Typical 13.5 mm h Typical 1.4 mm |
Brightness | Typical ΦV: 2100 lm Typical IV: 724 cd Typical ΦE: 6350 mW Typical IE: 2190 mW/sr |
| Operating Temperature | Top Minimum -40°C/Top Maximum 105°C |
| Product Category | Description | Order Code |
|---|---|---|
| GW KAFJB6.EM-SPSS-30S3 | ΦV = 1800.0 … 2400.0 lm, 3000 K (IF = 360 mA) | Q65113A1500 |
| GW KAFJB6.EM-SPSS-40S3 | ΦV = 1800.0 … 2400.0 lm, 4000 K (IF = 360 mA) | Q65113A1501 |
| GW KAFJB6.EM-SPSS-50S3 | ΦV = 1800.0 … 2400.0 lm, 5000 K (IF = 360 mA) | Q65113A1502 |
| GW KAFJB6.EM-SPSS-57S3 | ΦV = 1800.0 … 2400.0 lm, 5700 K (IF = 360 mA) | Q65113A1503 |
| GW KAFJB6.EM-SPSS-65S3 | ΦV = 1800.0 … 2400.0 lm, 6500 K (IF = 360 mA) | Q65113A1504 |
