Description

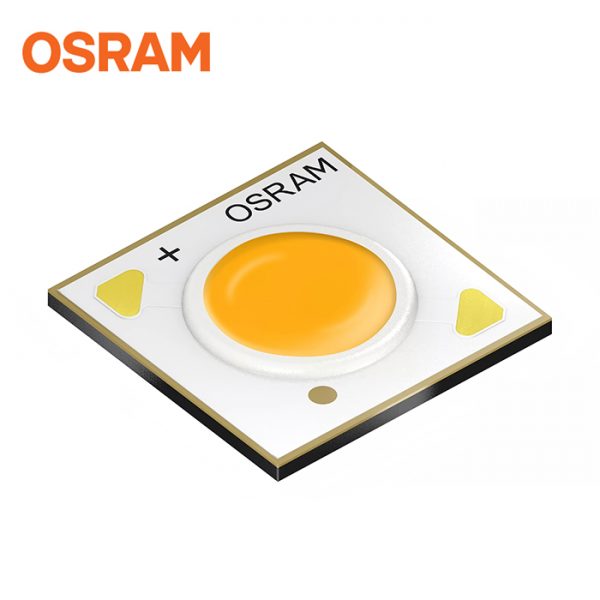

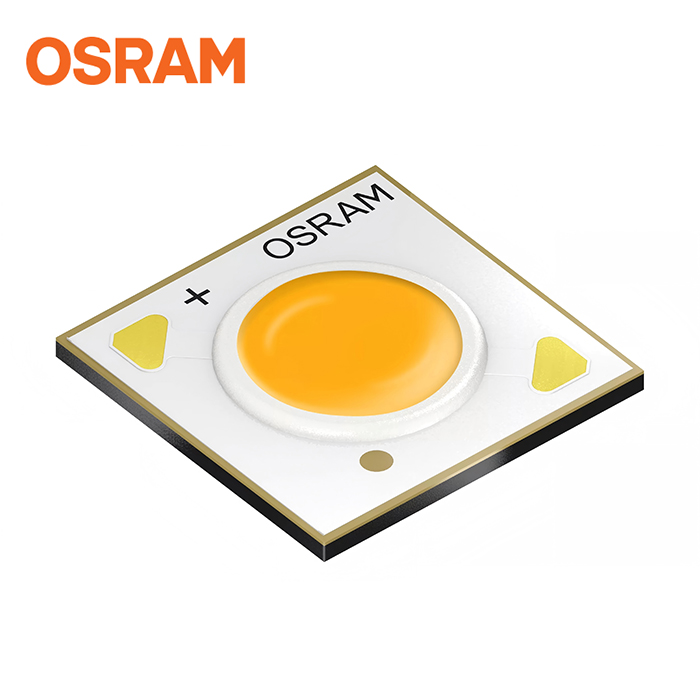

SOLERIQ® S 9 GW KAFJBA.CM
The SOLERIQ® S products were specifically designed for applications requiring large flux packages out of a compact area.
Applications
– Indoor Lighting
Features
– Package: Chip-on-Board
– Typ. Radiation: 120° (Lambertian emitter)
– Color temperature: 2700K – 5000K
– CRI: 90 (min.), R9: 50 (min.)
– ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
– Luminous Flux: typ. 3060 lm @ 3000 K, 25 °C
– Luminous efficacy: typ. 116 lm/W @ 3000 K, 25 °C
| Emission Color | White | CRI | 90 |
| Power | 26 W (Ultra High) | Beam Angle | ∢ Typical 120° |
| Dimensions | l Typical 15.8 mm w Typical 15.8 mm h Typical 1.5 mm |
Brightness | Typical ΦV: 3000 lm Typical IV: 1070 cd Typical ΦE: 10400 mW Typical IE: 3710 mW/sr |
| Operating Temperature | Top Minimum -40°C/Top Maximum 105°C |
| Product Category | Description | Order Code |
|---|---|---|
| GW KAFJBA.CM-STTR-27AB | ΦV = 2400 … 3590 lm, 2700 K (IF = 240 mA) | Q65113A4078 |
| GW KAFJBA.CM-STTR-30AB | ΦV = 2400 … 3590 lm, 3000 K (IF = 240 mA) | Q65113A4077 |
| GW KAFJBA.CM-STTR-35AB | ΦV = 2400 … 3590 lm, 3500 K (IF = 240 mA) | Q65113A4075 |
| GW KAFJBA.CM-STTR-40AB | ΦV = 2400 … 3590 lm, 4000 K (IF = 240 mA) | Q65113A4076 |
| GW KAFJBA.CM-STTR-50AB | ΦV = 2400 … 3590 lm, 5000 K (IF = 240 mA) | Q65113A4074 |
