Description

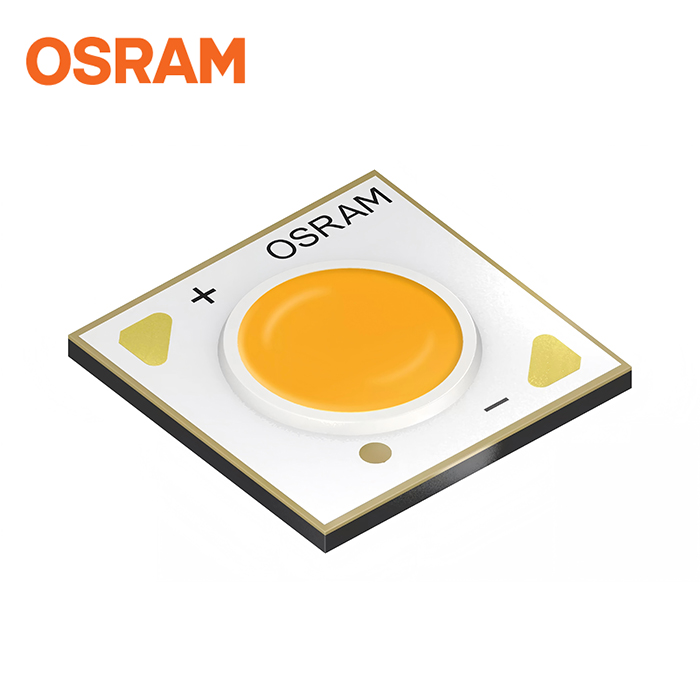

SOLERIQ™ S 9 GW KAFJBB.GM
The SOLERIQ™ S products were specifically designed for applications requiring large flux packages out of a compact area.
Applications
– Indoor Lighting
Features
– Package: Chip-on-Board
– Typ. Radiation: 120°
– Color temperature: 2700K – 5000K
– CRI: 96 (min.), 97 (typ.)
– ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
– Luminous Flux: typ. 2018 lm @ 3000 K, 25 °C
– Luminous efficacy: typ. 115 lm/W @ 3000 K, 25 °C
| Emission Color | White | CRI | 96 |
| Power | 18.0 W (Ultra High) | Beam Angle | ∢ Typical 110° |
| Dimensions | l Typical 15.8 mm w Typical 15.8 mm h Typical 1.15 mm |
Brightness | Typical ΦV: 2110 lm Typical IV: 807 cd Typical ΦE: 7700 mW Typical IE: 2940 mW/sr Typical ΦP: 10.5 µmol/s |
| Operating Temperature | Top Minimum -40°C/Top Maximum 105°C |
| Product Category | Description | Order Code |
|---|---|---|
| GW KAFJBB.GM-E1-27A2D2 | ΦV = 1860 … 2056 lm, 2700 K (IF = 500 mA) | Q65113A7099 |
| GW KAFJBB.GM-E13-50A2D2 | ΦV = 2130 … 2360 lm, 5000 K (IF = 500 mA) | Q65113A9295 |
| GW KAFJBB.GM-E2-30A2D2 | ΦV = 1917 … 2119 lm, 3000 K (IF = 500 mA) | Q65113A7098 |
| GW KAFJBB.GM-E3-35A2D2 | ΦV = 2020 … 2232 lm, 3500 K (IF = 500 mA) | Q65113A7096 |
| GW KAFJBB.GM-E4-40A2D2 | ΦV = 2111 … 2333 lm, 4000 K (IF = 500 mA) | Q65113A7097 |
