Description

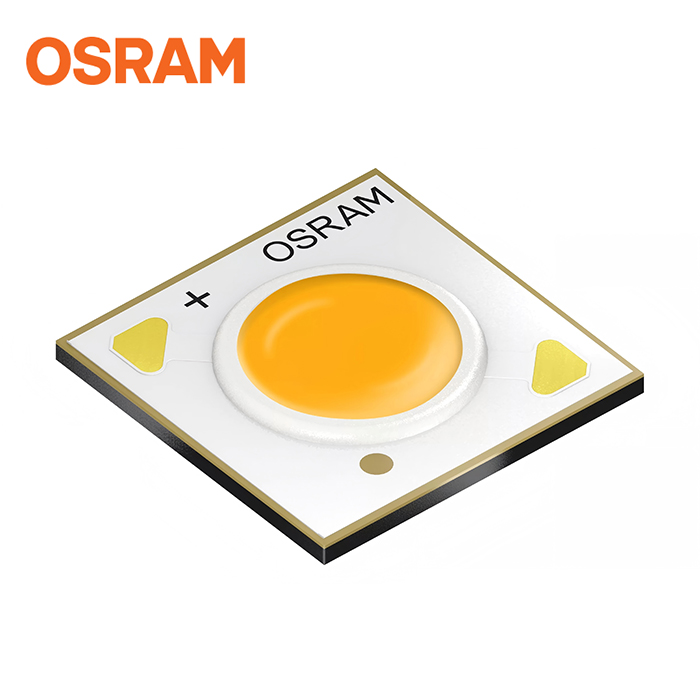

SOLERIQ® S 9 GW KAFLBA.CM
The SOLERIQ® S products were specifically designed for applications requiring large flux packages out of a compact area.
Applications
– Indoor Lighting
Features
– Package: Chip-on-Board
– Typ. Radiation: 120° (Lambertian emitter)
– Color temperature: 2700K – 5000K
– CRI: 90 (min.), R9: 50 (min.)
– ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
– Luminous Flux: typ. 3600 lm @ 3000 K, 25 °C
– Luminous efficacy: typ. 106 lm/W @ 3000 K, 25 °C
| Emission Color | White | CRI | 90 |
| Power | 34 W (Ultra High) | Beam Angle | ∢ Typical 120° |
| Dimensions | l Typical 15.8 mm w Typical 15.8 mm h Typical 1.5 mm |
Brightness | Typical ΦV: 3770 lm Typical IV: 1290 cd Typical ΦE: 13100 mW Typical IE: 4460 mW/sr |
| Operating Temperature | Top Minimum -40°C/Top Maximum 105°C |
| Product Category | Description | Order Code |
|---|---|---|
| GW KAFLBA.CM-TQTU-27AB | ΦV = 3040 … 4500 lm, 2700 K (IF = 920 mA) | Q65113A4089 |
| GW KAFLBA.CM-TQTU-30AB | ΦV = 3040 … 4500 lm, 3000 K (IF = 920 mA) | Q65113A4100 |
| GW KAFLBA.CM-TQTU-35AB | ΦV = 3040 … 4500 lm, 3500 K (IF = 920 mA) | Q65113A4073 |
| GW KAFLBA.CM-TQTU-40AB | ΦV = 3040 … 4500 lm, 4000 K (IF = 920 mA) | Q65113A4072 |
| GW KAFLBA.CM-TQTU-50AB | ΦV = 3040 … 4500 lm, 5000 K (IF = 920 mA) | Q65113A4071 |
