Description

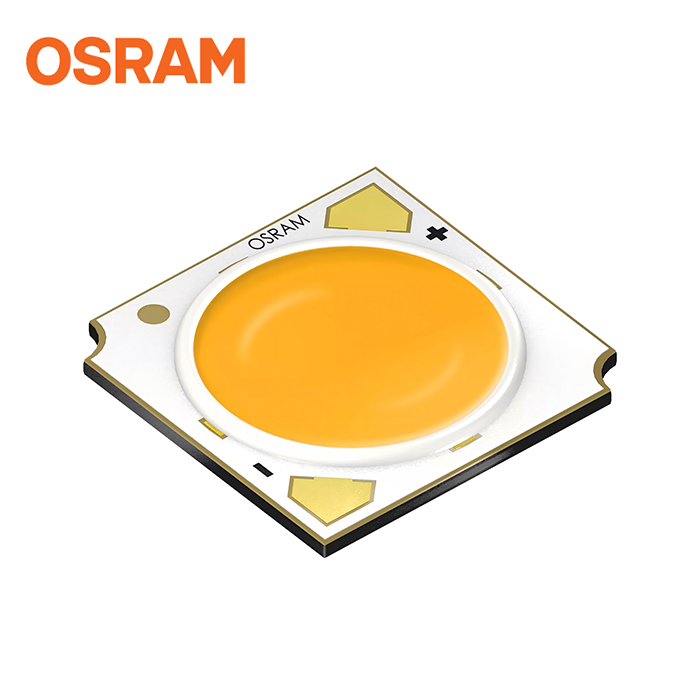

SOLERIQ™ S 15 GW KAGLB6.EM
The SOLERIQ™ S products were specifically designed for applications requiring large flux packages out of a compact area.
Applications
– Indoor Lighting
Features
– Package: Chip-on-Board
– Typ. Radiation: 120° (Lambertian emitter)
– Color temperature: 2700K – 4000K
– CRI: 80 (min.)
– ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
– Luminous Flux: typ. 2982 lm @ 3000 K, 85 °C
– Luminous efficacy: typ. 161 lm/W @ 3000 K, 85 °C
| Emission Color | White | CRI | 80 |
| Power | 19.0 W (Ultra High) | Beam Angle | ∢ Typical 120° |
| Dimensions | l Typical 19.0 mm w Typical 19.0 mm h Typical 0.9 mm |
Brightness | Typical ΦV: 3150 lm Typical IV: 1040 cd Typical ΦE: 9550 mW Typical IE: 3160 mW/sr Typical ΦP: 15.3 µmol/s |
| Operating Temperature | Top Minimum -40°C/Top Maximum 105°C |
| Product Category | Description | Order Code |
|---|---|---|
| GW KAGLB6.EM-STTR-27S3 | ΦV = 2400 … 3590 lm, 2700 K (IF = 540 mA) | Q65113A8268 |
| GW KAGLB6.EM-SUTR-30S3 | ΦV = 2590 … 3590 lm, 3000 K (IF = 540 mA) | Q65113A8267 |
| GW KAGLB6.EM-TPTS-40S3 | ΦV = 2800 … 3900 lm, 4000 K (IF = 540 mA) | Q65113A8266 |
