Description

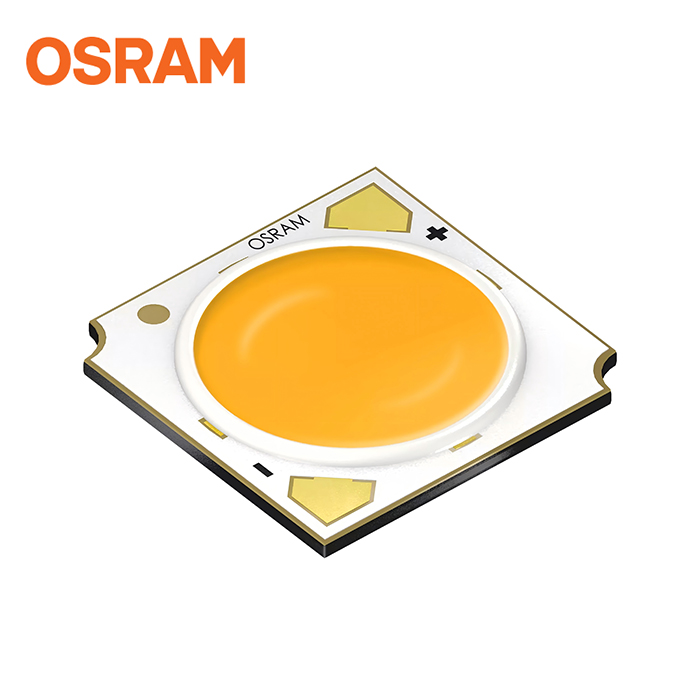

SOLERIQ™ S 15 GW KAGMB6.CM
The SOLERIQ™ S products were specifically designed for applications requiring large flux packages out of a compact area.
Applications
– Indoor Lighting
Features
– Package: Chip-on-Board
– Typ. Radiation: 120° (Lambertian emitter)
– Color temperature: 3000K – 4000K
– CRI: 90 (min.)
– ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
– Luminous Flux: typ. 3335 lm @ 3000 K, 85 °C
– Luminous efficacy: typ. 135 lm/W @ 3000 K, 85 °C
| Emission Color | White | CRI | 90 |
| Power | 25.0 W (Ultra High) | Beam Angle | ∢ Typical 120° |
| Dimensions | l Typical 19.0 mm w Typical 19.0 mm h Typical 0.9 mm |
Brightness | Typical ΦV: 3350 lm Typical IV: 1120 cd Typical ΦE: 11400 mW Typical IE: 3830 mW/sr |
| Operating Temperature | Top Minimum -40°C/Top Maximum 105°C |
| Product Category | Description | Order Code |
|---|---|---|
| GW KAGMB6.CM-TPTS-30S3 | ΦV = 2800 … 3900 lm, 3000 K (IF = 720 mA) | Q65113A0332 |
| GW KAGMB6.CM-TQTS-35S3 | ΦV = 3040 … 3900 lm, 3500 K (IF = 720 mA) | Q65113A0333 |
| GW KAGMB6.CM-TQTS-40S3 | ΦV = 3040 … 3900 lm, 4000 K (IF = 720 mA) | Q65113A0331 |
