Description

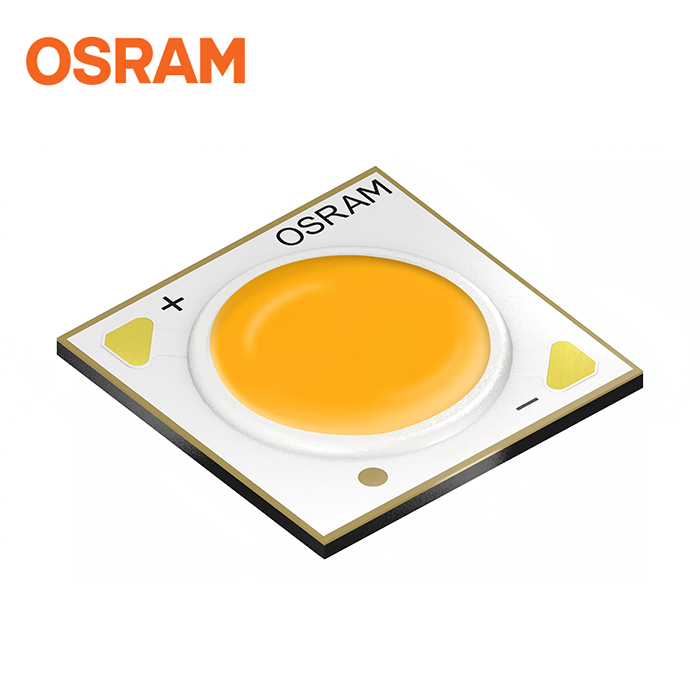

SOLERIQ® S 12 GW KAMJBA.CM
The SOLERIQ® S products were specifically designed for applications requiring large flux packages out of a compact area.
Applications
– Indoor Lighting
Features
– Package: Chip-on-Board
– Typ. Radiation: 120° (Lambertian emitter)
– Color temperature: 3000K – 5000K
– CRI: 90 (min.)
– ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
– Luminous Flux: typ. 3073 lm @ 3000 K, 25 °C
– Luminous efficacy: typ. 120 lm/W @ 3000 K, 25 °C
| Emission Color | White | CRI | 90 |
| Power | 26.0 W (Ultra High) | Beam Angle | ∢ Typical 120° |
| Dimensions | l Typical 17.9 mm w Typical 17.9 mm h Typical 1.5 mm |
Brightness | Typical ΦV: 3390 lm Typical IV: 1150 cd Typical ΦE: 11400 mW Typical IE: 3890 mW/sr |
| Operating Temperature | Top Minimum -40°C/Top Maximum 105°C |
| Product Category | Description | Order Code |
|---|---|---|
| GW KAMJBA.CM-SUTT-30S3 | ΦV = 2590 … 4190 lm, 3000 K (IF = 700 mA) | Q65113A0951 |
| GW KAMJBA.CM-SUTT-35S3 | ΦV = 2590 … 4190 lm, 3500 K (IF = 700 mA) | Q65113A0949 |
| GW KAMJBA.CM-SUTT-40S3 | ΦV = 2590 … 4190 lm, 4000 K (IF = 700 mA) | Q65113A0950 |
| GW KAMJBA.CM-SUTT-50S3 | ΦV = 2590 … 4190 lm, 5000 K (IF = 700 mA) | Q65113A0948 |
