Description

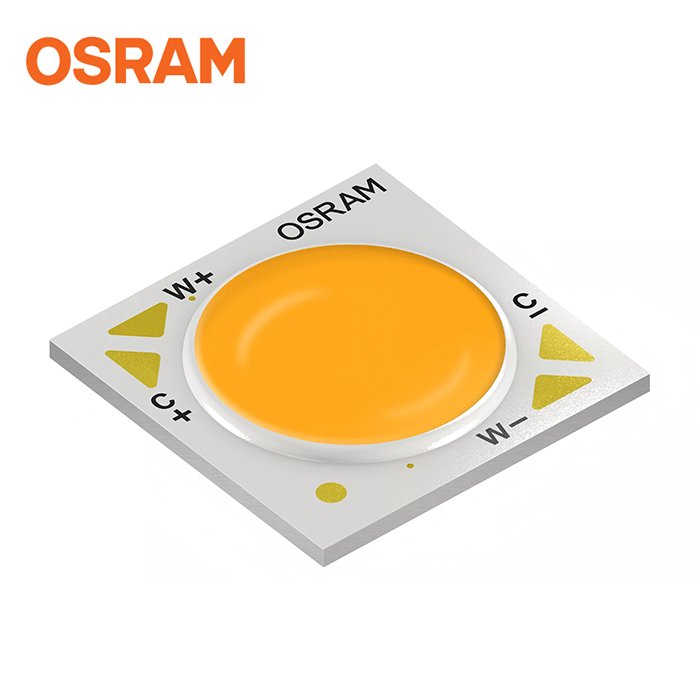

SOLERIQ® S 12 GW KAMJBT.CM
The SOLERIQ® S products were specifically designed for applications requiring large flux packages out of a compact area.
Applications
– Indoor Lighting
Features
– Package: Chip-on-Board
– Typ. Radiation: 120° (Lambertian emitter)
– CRI: 90 (min.)
– ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
– Color temperature: 2700K – 6500K
– Luminous flux: typ. 3498 lm @ 4000 K; typ. 3578 lm @ 6500 K
– Luminous efficacy: typ. 128 lm/W @ 4000 K; typ. 131 lm/W @ 6500 K
| Emission Color | White | CRI | 90 |
| Power | 27.0 W (Ultra High) | Beam Angle | ∢ Typical 120° |
| Dimensions | l Typical 17.9 mm w Typical 17.9 mm h Typical 1.65 mm |
Brightness | Typical ΦV: 3540 lm Typical IV: 1210 cd Typical ΦE: 11800 mW Typical IE: 4000 mW/sr |
| Operating Temperature | Top Minimum -40°C/Top Maximum 105°C |
| Product Category | Description | Order Code |
|---|---|---|
| GW KAMJBT.CM-E6+E5-40S3+27S3 | ● ΦV = 3250.0 … 3745.0 lm (IF□=□750□mA), 2700 K ● ΦV = 2790.0 … 3210.0 lm (IF□=□750□mA), 4000 K |
Q65113A7575 |
| GW KAMJBT.CM-E7+E5-65S3+27S3 | ● ΦV = 3325.0 … 3830.0 lm (IF = 750 mA), 2700 K ● ΦV = 2790.0 … 3210.0 lm (IF = 750 mA), 6500 K |
Q65113A7570 |
