Description

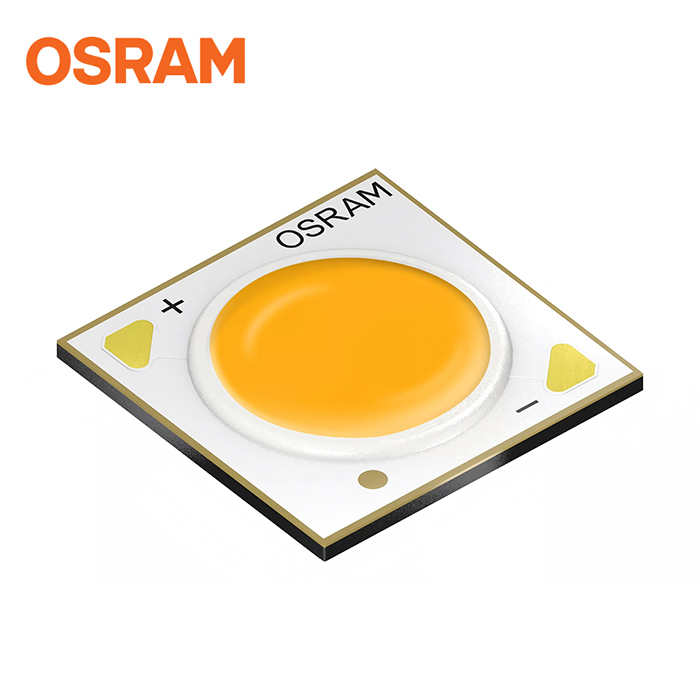

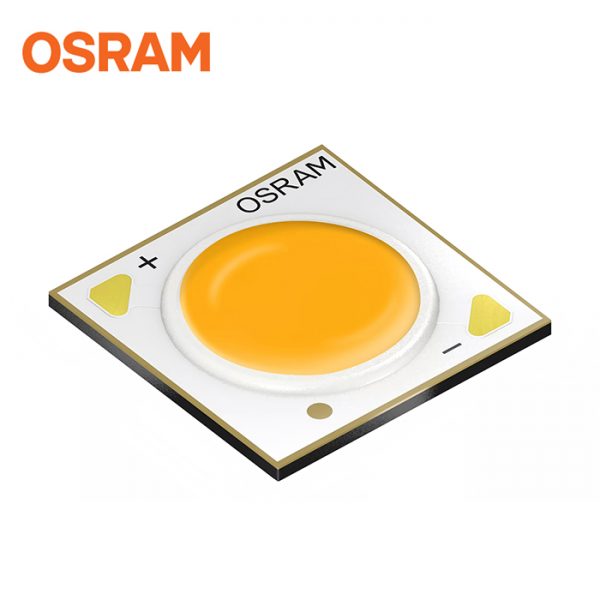

SOLERIQ® S 12 GW KAMLBA.CM
The SOLERIQ® S products were specifically designed for applications requiring large flux packages out of a compact area.
Applications
– Indoor Lighting
Features
– Package: Chip-on-Board
– Typ. Radiation: 120° (Lambertian emitter)
– Color temperature: 3000K – 5000K
– CRI: 90 (min.)
– ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
– Luminous Flux: typ. 3945 lm @ 3000 K, 25 °C
– Luminous efficacy: typ. 122 lm/W @ 3000 K, 25 °C
| Emission Color | White | CRI | 90 |
| Power | 32.0 W (Ultra High) | Beam Angle | ∢ Typical 120° |
| Dimensions | l Typical 17.9 mm w Typical 17.9 mm h Typical 1.5 mm |
Brightness | Typical ΦV: 1270 lm Typical IV: 426 cd Typical ΦE: 4340 mW Typical IE: 1450 mW/sr |
| Operating Temperature | Top Minimum -40°C/Top Maximum 105°C |
| Product Category | Description | Order Code |
|---|---|---|
| GW KAMLBA.CM-TRUQ-30S3 | ΦV = 3300 … 5200 lm, 3000 K (IF = 900 mA) | Q65113A0947 |
| GW KAMLBA.CM-TRUQ-35S3 | ΦV = 3300 … 5200 lm, 3500 K (IF = 900 mA) | Q65113A0946 |
| GW KAMLBA.CM-TRUQ-40S3 | ΦV = 3300 … 5200 lm, 4000 K (IF = 900 mA) | Q65113A0945 |
| GW KAMLBA.CM-TRUQ-50S3 | ΦV = 3300 … 5200 lm, 5000 K (IF = 900 mA) | Q65113A0944 |
