Description

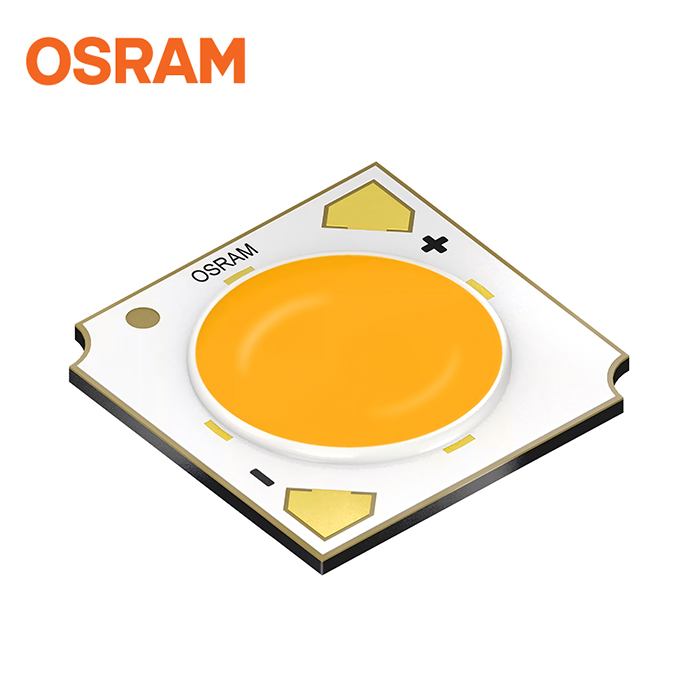

SOLERIQ™ S 13 GW KANLB6.CM
The SOLERIQ™ S products were specifically designed for applications requiring large flux packages out of a compact area.
Applications
– Indoor Lighting
Features
– Package: Chip-on-Board
– Typ. Radiation: 120° (Lambertian emitter)
– Color temperature: 3000K – 4000K
– CRI: 90 (min.)
– ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
– Luminous Flux: typ. 2522 lm @ 3000 K, 85 °C
– Luminous efficacy: typ. 137 lm/W @ 3000 K, 85 °C
| Emission Color | White | CRI | 90 |
| Power | 18.0 W (Ultra High) | Beam Angle | ∢ Typical 120° |
| Dimensions | l Typical 19.0 mm w Typical 19.0 mm h Typical 1.4 mm |
Brightness | Typical ΦV: 2640 lm Typical IV: 910 cd Typical ΦE: 9000 mW Typical IE: 3100 mW/sr |
| Operating Temperature | Top Minimum -40°C/Top Maximum 105°C |
| Product Category | Description | Order Code |
|---|---|---|
| GW KANLB6.CM-SSTP-30S3 | ΦV = 2240 … 3040 lm, 3000 K (IF = 540 mA) | Q65113A1477 |
| GW KANLB6.CM-SSTP-40S3 | ΦV = 2240 … 3040 lm, 4000 K (IF = 540 mA) | Q65113A1478 |
