Description

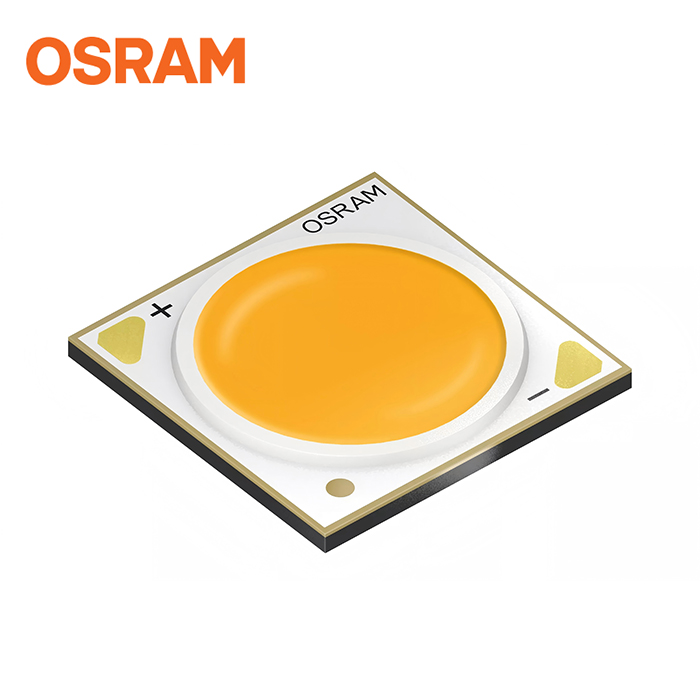

SOLERIQ® S 14 GW KAPLBB.GM
The SOLERIQ® S products were specifically designed for applications requiring large flux packages out of a compact area.
Applications
– Indoor Lighting
Features
– Package: Chip-on-Board
– Typ. Radiation: 120°
– Color temperature: 2700K – 5000K
– CRI: 96 (min.), 97 (typ.)
– ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
– Luminous Flux: typ. 3853 lm @ 3000 K, 25 °C
– Luminous efficacy: typ. 122 lm/W @ 3000 K, 25 °C
| Emission Color | White | CRI | 96 |
| Power | 32.0 W (Ultra High) | Beam Angle | ∢ Typical 110° |
| Dimensions | l Typical 17.9 mm w Typical 17.9 mm h Typical 1.15 mm |
Brightness | Typical ΦV: 3950 lm Typical IV: 1490 cd Typical ΦE: 14400 mW Typical IE: 5430 mW/sr |
| Operating Temperature | Top Minimum -40°C/Top Maximum 105°C |
| Product Category | Description | Order Code | |
|---|---|---|---|
| GW KAPLBB.GM-F1-27A2D2 | ΦV = 3501.0 … 3869.0 lm, 2700 K (IF = 900 mA) | Q65113A7095 |
|
| GW KAPLBB.GM-F10-50A2D2 | ΦV = 3980.0 … 4410.0 lm, 5000 K (IF = 900 mA) | Q65113A9296 |
|
| GW KAPLBB.GM-F2-30A2D2 | ΦV = 3660.0 … 4046.0 lm, 3000 K (IF = 900 mA) | Q65113A7093 |
|
| GW KAPLBB.GM-F3-35A2D2 | ΦV = 3674.0 … 4060.0 lm, 3500 K (IF = 900 mA) | Q65113A7094 |
|
| GW KAPLBB.GM-F4-40A2D2 | ΦV = 3904.0 … 4314.0 lm, 4000 K (IF = 900 mA) | Q65113A7092 |
