Description

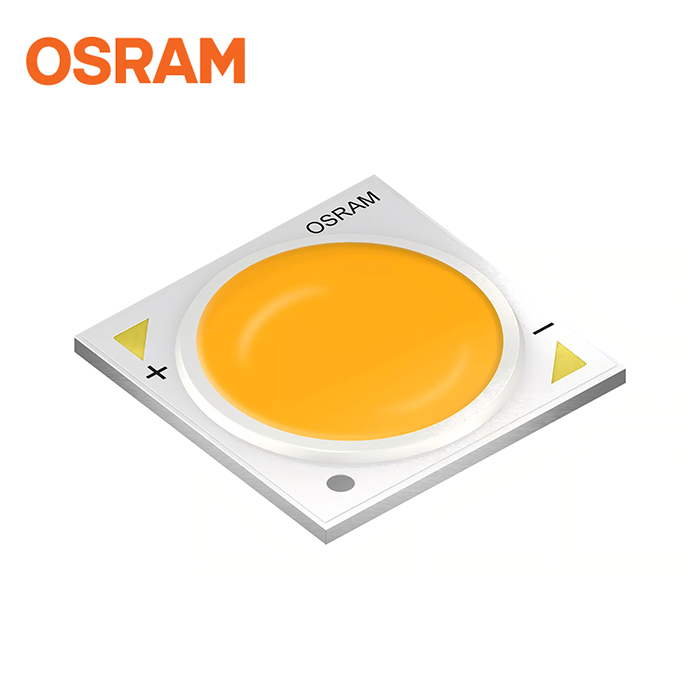

SOLERIQ® S 14 GW KAPNBA.CM
The SOLERIQ® S products were specifically designed for applications requiring large flux packages out of a compact area.
Applications
– Indoor Lighting
Features
– Package: Chip-on-Board
– Typ. Radiation: 120° (Lambertian emitter)
– Color temperature: 2700K – 5000K
– CRI: 90 (min.), R9: 50 (min.)
– ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
– Luminous Flux: typ. 5460 lm @ 3000 K, 25 °C
– Luminous efficacy: typ. 112 lm/W @ 3000 K, 25 °C
| Emission Color | White | CRI | 90 |
| Power | 49.0 W (Ultra High) | Beam Angle | ∢ Typical 120° |
| Dimensions | l Typical 17.9 mm w Typical 17.9 mm h Typical 1.5 mm |
Brightness | Typical ΦV: 5540 lm Typical IV: 1890 cd Typical ΦE: 18900 mW Typical IE: 6440 mW/sr |
| Operating Temperature | Top Minimum -40°C/Top Maximum 105°C |
| Product Category | Description | Order Code |
|---|---|---|
| GW KAPNBA.CM-UPUT-27AB | ΦV = 4500 … 6580 lm, 2700 K (IF = 1400 mA) | Q65113A4094 |
| GW KAPNBA.CM-UPUT-30AB | ΦV = 4500 … 6580 lm, 3000 K (IF = 1400 mA) | Q65113A4093 |
| GW KAPNBA.CM-UPUT-35AB | ΦV = 4500 … 6580 lm, 3500 K (IF = 1400 mA) | Q65113A4092 |
| GW KAPNBA.CM-UPUU-50AB | ΦV = 4500 … 7100 lm, 5000 K (IF = 1400 mA) | Q65113A4090 |
| GW KAPNBA.CM-USUU-40AB | ΦV = 5630 … 7100 lm, 4000 K (IF = 1400 mA) | Q65113A4091 |
