Description

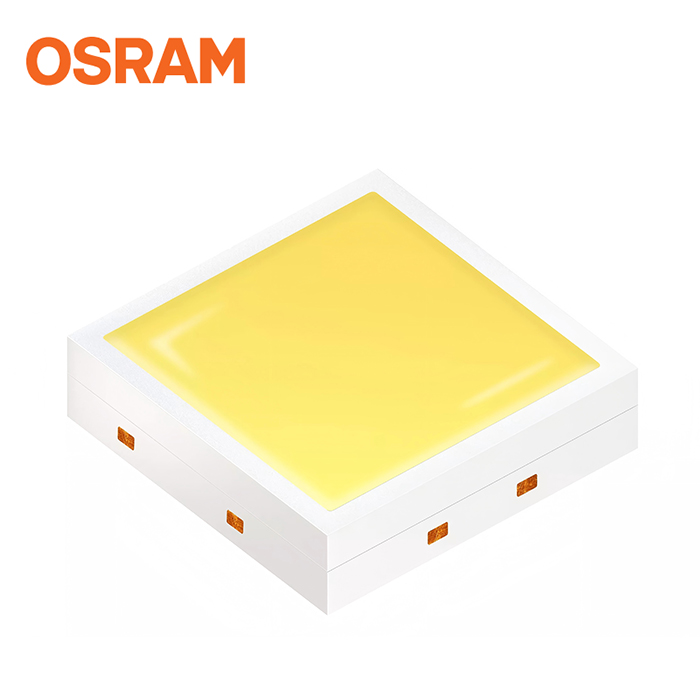

OSCONIQ™ C 2424 GW PLLRA1.PM
High-power LED with Chip-Scale-Package (CSP) footprint, excellent efficiency and color homogeneity, superior reliability and lifetime.
Applications
– Entertainment
– Indoor Lighting
– Outdoor & Industrial Lighting
Features
– Typ. Radiation: 120° (Lambertian emitter)
– Color temperature: 2200K – 6500K
– CRI: 70 (min.), 72 (typ.), R9: -50 (min.)
– ESD: 8 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)
– Luminous Flux: typ. 325 lm @ 5000 K, 85 °C
– Luminous efficacy: typ. 166 lm/W @ 5000 K, 85 °C
| Emission Color | White | CRI | 70 |
| Power | 2.0 W (High) | Beam Angle | ∢ Typical 120° |
| Dimensions | l Typical 2.4 mm w Typical 2.4 mm h Typical 0.6 mm |
Brightness | Typical ΦV: 285 lm Typical IV: 93.3 cd Typical ΦE: 792 mW Typical IE: 259 mW/sr |
| Operating Temperature | Top Minimum -40°C/Top Maximum 125°C |
| Product Category | Description | Order Code |
|---|---|---|
| GW PLLRA1.PM-M6N2-XX510-1 | ΦV = 230 … 300 lm, 2200 K (IF = 700 mA) | Q65113A1561 |
| GW PLLRA1.PM-M9N4-XX58-1 | ΦV = 260 … 320 lm, 2700 K (IF = 700 mA) | Q65113A1562 |
| GW PLLRA1.PM-N3N5-XX57-1 | ΦV = 300 … 330 lm, 3000 K (IF = 700 mA) | Q65113A0539 |
| GW PLLRA1.PM-N4N6-XX51-1 | ΦV = 310 … 340 lm, 6500 K (IF = 700 mA) | Q65113A0535 |
| GW PLLRA1.PM-N4N6-XX52-1 | ΦV = 310 … 340 lm, 5700 K (IF = 700 mA) | Q65113A0536 |
| GW PLLRA1.PM-N4N6-XX53-1 | ΦV = 310 … 340 lm, 5000 K (IF = 700 mA) | Q65113A0542 |
| GW PLLRA1.PM-N4N6-XX55-1 | ΦV = 310 … 340 lm, 4000 K (IF = 700 mA) | Q65113A0549 |
| GW PLLRA1.PM-N4N6-XX56-1 | ΦV = 310 … 340 lm, 3500 K (IF = 700 mA) | Q65113A0537 |
