Description

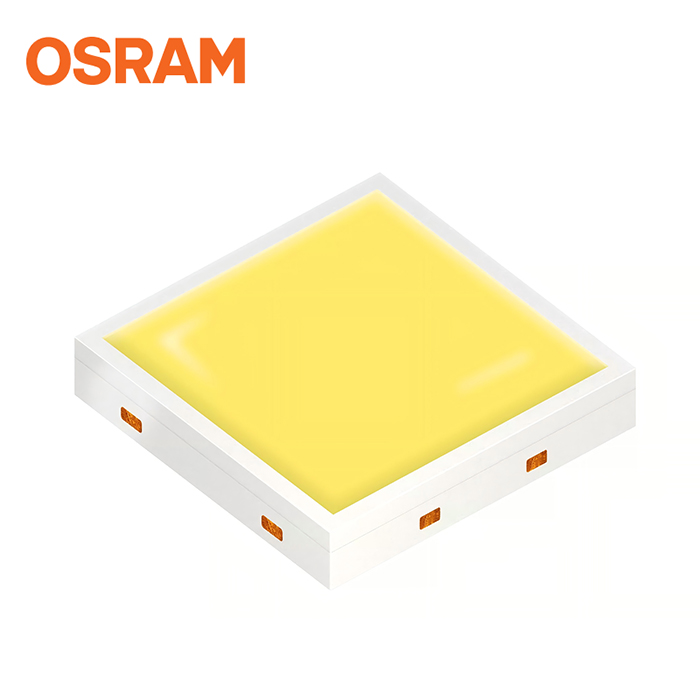

OSCONIQ® C 3030 GW PLTRA1.CM
Leveraging the strengths of a traditional high power LED as well as the benefits of a chip scale package, the OSCONIQ C 3030 LEDs are designed to deliver the highest luminous intensity at the smallest footprint in a luminaire along with outstanding life- time and low thermal resistance. With their compact size, these LEDs can be densely clustered and scalable to multiply for higher flux output. It also features ams Osram’s proven UX:3 chip technology and an integrated ESD, which protects against damage caused by electrostatic voltages up to 8 kV.

The OSCONIQ C 3030 is ideal for high-power and high-inten-sity applications such as stadium flood or spotlights, high-mast lighting and architectural spotlights.

Applications
– Outdoor & Industrial Lighting

Features
– Package: QFN Package
– Typ. Radiation: 120° (Lambertian emitter)
– Color temperature: 5000K – 5700K
– CRI: 90 (min.), 93 (typ.), R9: 50 (min.)
– ESD: 8 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)
– Luminous Flux: typ. 398 lm @ 5700 K
– Luminous efficacy: typ. 133 lm/W @ 5700 K
