Description

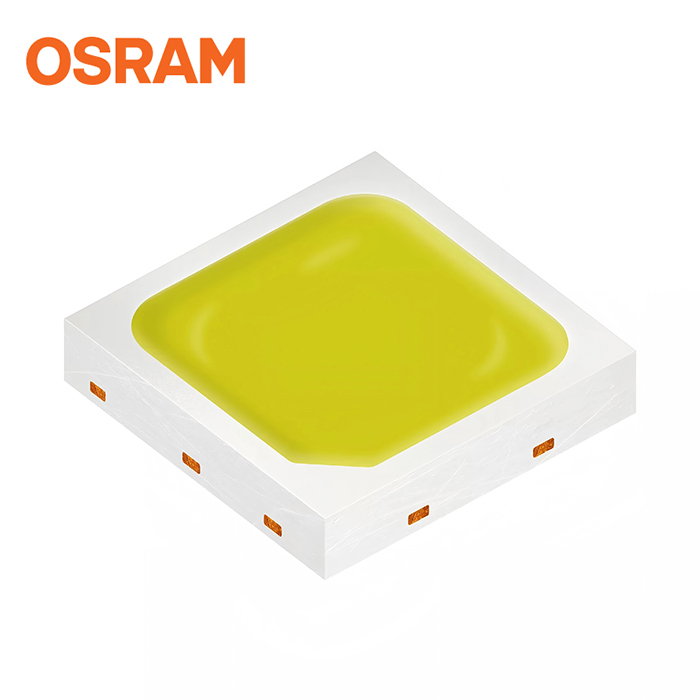

DURIS ® S 5 GW PSLM31.WB
The compact, mid-power Duris® S 5 LED with industry standard 3030 package that comes with high efficacy, color quality and long lifetime. Ideal choice for indoor General Lighting applications.
Applications
– Architecture / Garden Lighting (LED & Laser)
– Medical Illumination
– Mood Lighting
– Photo Therapy
Features
– Package: white SMT package, colored diffused resin
– Typ. Radiation: 120° (Lambertian emitter)
– Lumen maintenance: Test results according to IESNA LM-80 available
– ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
– Luminous Flux: typ. 61 lm
– Luminous efficacy: typ. 210 lm/W
| Emission Color | Pure Green (554-566 nm) | Operating Temperature | Top Minimum -40°C/Top Maximum 100°C |
| Power | 0.3 W (Mid) | Beam Angle | ∢ Typical 120° |
| Dimensions | l Typical 3.0 mm w Typical 3.0 mm h Typical 0.6 mm |
Brightness | Typical ΦV: 63.5 lm Typical IV: 20.4 cd Typical ΦE: 165 mW Typical IE: 53 mW/sr |
| Product Category | Description | Order Code |
|---|---|---|
| GW PSLM31.WB-JSJU-M1M6-1 | ΦV = 56 … 71 lm (IF = 100 mA) | Q65112A8443 |
