Description
The compact, mid-power DURIS S 5 LED addresses three different luminous flux levels, using just one package and solder pad. With high efficacies, color quality and long lifetimes it is the ideal choice for all indoor General Lighting applications

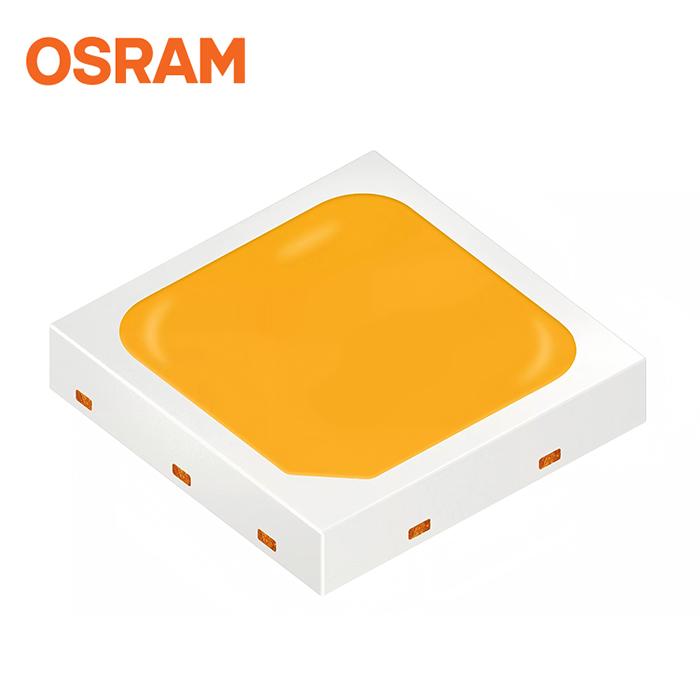

DURIS ® S 5 GW PSLT33.EM
- Applications
- Area Lights
- Highbay Industrial
Features
- Package: white SMT package, colored diffused silicone resin
- Typ. Radiation: 120° (Lambertian emitter)
- Color temperature: 2700K – 6500K
- CRI: 80 (min.), 82 (typ.)
- ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
- Luminous Flux: typ. 137 lm @ 3000 K
- Luminous efficacy: typ. 144 lm/W @ 3000 K
DURIS ® S 5 GW PSLT33.EM (G3)
Applications
- Indoor Lighting
- Outdoor & Industrial Lighting
Features
- Package: white SMT package, colored diffused silicone resin
- Typ. Radiation: 120° (Lambertian emitter)
- Color temperature: 2700K – 6500K
- CRI: 80 (min.), 82 (typ.), R9: 0 (min.)
- ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
- Luminous Flux: typ. 138 lm @ 3000 K
- Luminous efficacy: typ. 150 lm/W @ 3000 K
| Emission Color | White | CRI | 80 |
| Power | 0.96 W (High) | Beam Angle | ∢ Typical 120° |
| Dimensions | l Typical 3.0 mm w Typical 3.0 mm h Typical 0.65 mm |
Brightness | Typical ΦV: 138 lm Typical IV: 46.3 cd Typical ΦE: 416 mW Typical IE: 140 mW/sr |
| Operating Temperature | Top Minimum -40°C/Top Maximum 100°C |
| Product Category | Description | Order Code |
|---|---|---|
| GW PSLT33.EM-K5L1-XX58-1-G3 | ΦV = 125.0 … 160.0 lm, 2700 K (IF = 150 mA) | Q65112A8945 |
| GW PSLT33.EM-K5LW-XX58-1 | ΦV = 125.0 … 140.0 lm, 2700 K (IF = 150 mA) | Q65112A6791 |
| GW PSLT33.EM-LVL1-XX57-1-G3 | ΦV = 130.0 … 160.0 lm, 3000 K (IF = 150 mA) | Q65112A8944 |
| GW PSLT33.EM-LVLX-XX57-1 | ΦV = 130.0 … 145.0 lm, 3000 K (IF = 150 mA) | Q65112A6792 |
| GW PSLT33.EM-LWL1-XX52-1-G3 | ΦV = 135.0 … 160.0 lm, 5700 K (IF = 150 mA) | Q65112A8943 |
| GW PSLT33.EM-LWL1-XX53-1-G3 | ΦV = 135.0 … 160.0 lm, 5000 K (IF = 150 mA) | Q65112A8942 |
| GW PSLT33.EM-LWL1-XX55-1-G3 | ΦV = 135.0 … 160.0 lm, 4000 K (IF = 150 mA) | Q65112A8941 |
| GW PSLT33.EM-LWL1-XX56-1-G3 | ΦV = 135.0 … 160.0 lm, 3500 K (IF = 150 mA) | Q65112A8940 |
| GW PSLT33.EM-LWLY-XX51-1 | ΦV = 135.0 … 150.0 lm, 6500 K (IF = 150 mA) | Q65112A6793 |
| GW PSLT33.EM-LWLY-XX52-1 | ΦV = 135.0 … 150.0 lm, 5700 K (IF = 150 mA) | Q65112A6794 |
| GW PSLT33.EM-LWLY-XX53-1 | ΦV = 135.0 … 150.0 lm, 5000 K (IF = 150 mA) | Q65112A6795 |
| GW PSLT33.EM-LWLY-XX55-1 | ΦV = 135.0 … 150.0 lm, 4000 K (IF = 150 mA) | Q65112A6796 |
| GW PSLT33.EM-LWLY-XX56-1 | ΦV = 135.0 … 150.0 lm, 3500 K (IF = 150 mA) | Q65112A6797 |
| GW PSLT33.EM-LXL3-XX51-1-G3 | ΦV = 140.0 … 170.0 lm, 6500 K (IF = 150 mA) | Q65112A8939 |
