Description

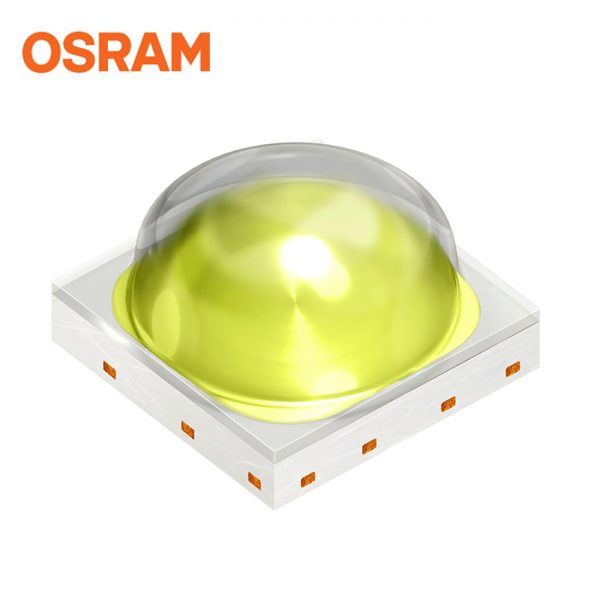

OSCONIQ™ P 3737 (2W) GW PUBRA1.HW
OSCONIQ™ P 3737 Batwing delivers exceptional light uniformity, enhanced brightness and long lifetime. Featuring a unique batwing radiation profile, it ensures wide-angle coverage with reduced hotspots, making it ideal for large-area horticultur- al lighting. Available in a range of targeted wavelengths, the P 3737 Batwing offers design flexibility and spectral precision to meet the dynamic needs of modern growers.
Applications
– Agriculture & Horticulture
– Entertainment
– Indoor Lighting
– Outdoor & Industrial Lighting
Features
– Package: SMD epoxy package with silicone lens
– ESD: 8 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)
– Typ. Radiation: 140°
– Radiant Flux (@ 700mA): typ. 1140 mW @ 85°C (M3 Bin)
– Radiant Efficiency (@ 700mA): typ. 57.5% @ 85°C (M3 Bin)
– Photon Flux (@ 700mA): typ. 5.01 μmol/s @ 85°C (M3 Bin)
– Photon Flux Efficacy (@ 700mA): typ. 2.53 μmol/J @ 85°C (M3 Bin)
| Emission Color | White | Operating Temperature | Top Minimum -40°C/Top Maximum 125°C |
| Power | 2.0 W (High) | Beam Angle | ∢ Typical 140° |
| Dimensions | l Typical 3.7 mm w Typical 3.7 mm h Typical 2.15 mm |
Brightness | Typical ΦV: 379 lm Typical IV: 124 cd Typical ΦE: 1120 mW Typical IE: 368 mW/sr Typical ΦP: 4.95 µmol/s |
| Product Category | Description | Order Code |
|---|---|---|
| GW PUBRA1.HW-S5T2-M1-1 | Φ<_sub>P = 4.65 … 5.50 μmol/s (IF = 700 mA) | Q65115A0316 |
| GW PUBRA1.HW-S5T2-M2-1 | Φ<_sub>P = 4.65 … 5.50 μmol/s (IF = 700 mA) | Q65115A0315 |
| GW PUBRA1.HW-S5T2-M3-1 | Φ<_sub>P = 4.65 … 5.50 μmol/s (IF = 700 mA) | Q65115A0339 |
| GW PUBRA1.HW-S5T3-M4-1 | Φ<_sub>P = 4.65 … 5.70 μmol/s (IF = 700 mA) | Q65115A0342 |
| GW PUBRA1.HW-S5T3-M5-1 | Φ<_sub>P = 4.65 … 5.70 μmol/s (IF = 700 mA) | Q65115A0341 |
| GW PUBRA1.HW-S6T3-M6-1 | Φ<_sub>P = 4.80 … 5.70 μmol/s (IF = 700 mA) | Q65115A0340 |
