Description

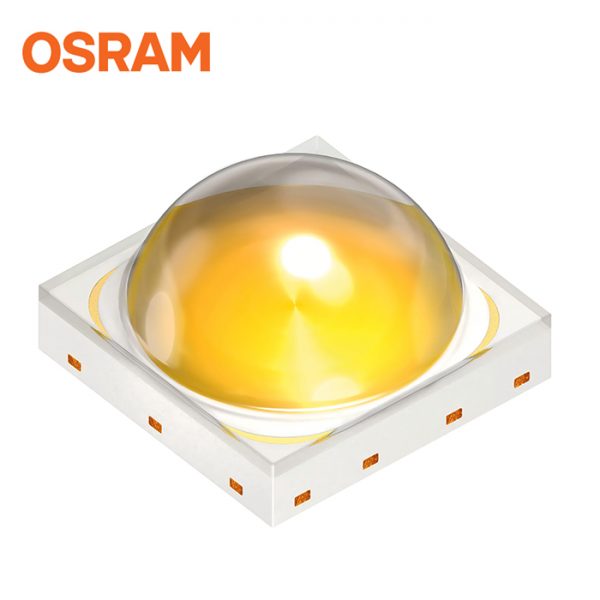

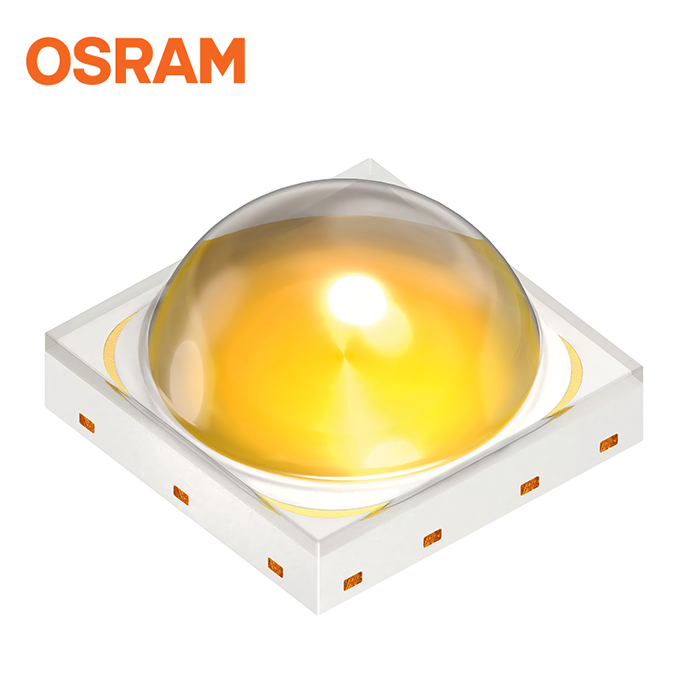

OSCONIQ® P 3737 (2W) GW PUSRA1.PM
High-power LED with high performance, superior robustness and long lifetime.
Applications
– Entertainment
– Indoor Lighting
– Outdoor & Industrial Lighting
Features
– Package: New SMD epoxy package with silicone lens
– Typ. Radiation: 120° (Lambertian emitter)
– Corrosion Robustness Class: 3B
– Color temperature: 3000K – 8000K
– CRI: 70 (min.), 72 (typ.), R9: -50 (min.)
– ESD: 8 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)
– Luminous Flux: typ. 346 lm @ 5000 K, 85 °C
– Luminous efficacy: typ. 174 lm/W @ 5000 K, 85 °C
| Emission Color | White | CRI | 70 |
| Power | 2.0 W (Mid) | Beam Angle | ∢ Typical 120° |
| Dimensions | l Typical 3.7 mm w Typical 3.7 mm h Typical 2.15 mm |
Brightness | Typical ΦV: 350 lm Typical IV: 113 cd Typical ΦE: 1070 mW Typical IE: 347 mW/sr |
| Operating Temperature | Top Minimum -40°C/Top Maximum 125°C |
| Product Category | Description | Order Code |
|---|---|---|
| GW PUSRA1.PM-N4P2-XX56-1 | ΦV = 310 … 390 lm, 3500 K (IF = 700 mA) | Q65113A3978 |
| GW PUSRA1.PM-N4P2-XX57-1 | ΦV = 310 … 390 lm, 3000 K (IF = 700 mA) | Q65113A3979 |
| GW PUSRA1.PM-N5P2-80PC-1 | ΦV = 320 … 390 lm, 8000 K (IF = 700 mA) | Q65113A3980 |
| GW PUSRA1.PM-N5P2-XX51-1 | ΦV = 320 … 390 lm, 6500 K (IF = 700 mA) | Q65113A3973 |
| GW PUSRA1.PM-N5P2-XX54-1 | ΦV = 320 … 390 lm, 4500 K (IF = 700 mA) | Q65113A3976 |
| GW PUSRA1.PM-N5P2-XX55-1 | ΦV = 320 … 390 lm, 4000 K (IF = 700 mA) | Q65113A3977 |
| GW PUSRA1.PM-N6P2-XX52-1 | ΦV = 330 … 390 lm, 5700 K (IF = 700 mA) | Q65113A3974 |
| GW PUSRA1.PM-N6P2-XX53-1 | ΦV = 330 … 390 lm, 5000 K (IF = 700 mA) | Q65113A3975 |
