Description

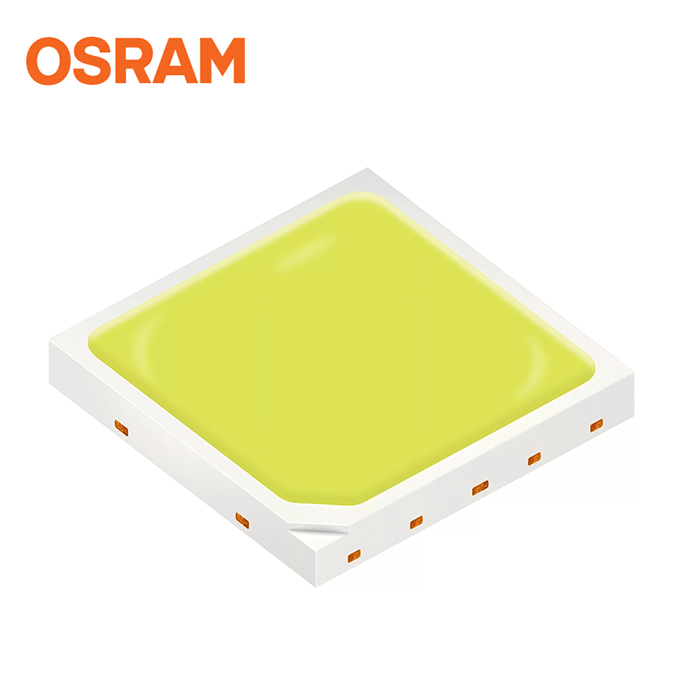

OSCONIQ® S 5050 GW Q9LR32.HW
OSCONIQ® S 5050 Horti White is the ideal white LED that en- ables luminaires to maximize system level photon efficacy per- formance for horticulture applications. Unlike conventional white LEDs, ams OSRAM’s Horti White LEDs utilizes a customized phosphor solution designed to facilitate the increase of non-con- verted red photons to deliver superior fixture level efficacy.
Applications
– Agriculture & Horticulture
Features
– Package: white SMT package, colored diffused silicone resin
– Typ. Radiation: 120° (Lambertian emitter)
– ESD: 8 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)
– Radiant Flux: typ. 661 mW @ M3 bin
– Photon Flux Efficacy: typ. 2.94 μmol/J @ M3 bin
| Emission Color | White | Operating Temperature | Top Minimum -40°C/Top Maximum 100°C |
| Power | 0.99 W (High) | Beam Angle | ∢ Typical 120° |
| Dimensions | l Typical 5.0 mm w Typical 5.0 mm h Typical 0.7 mm |
Brightness | Typical ΦV: 241 lm Typical IV: 79.3 cd Typical ΦE: 641 mW Typical IE: 211 mW/sr |
| Product Category | Description | Order Code |
|---|---|---|
| GW Q9LR32.HW-AEAF-M1-1 | ΦE = 609 … 672 mW (IF = 180 mA) | Q65113A2695 |
| GW Q9LR32.HW-AFAG-M2-1 | ΦE = 640 … 706 mW (IF = 180 mA) | Q65113A5890 |
| GW Q9LR32.HW-AFAG-M3-1 | ΦE = 640 … 706 mW (IF = 180 mA) | Q65113A5889 |
