Description

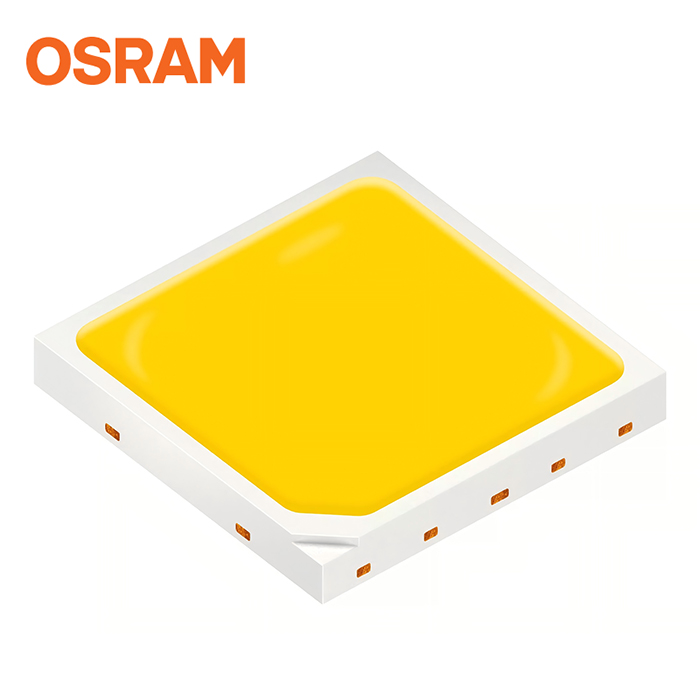

OSCONIQ® S 5050 GW Q9LR33.PM
The latest QFN cast 5050 LED version adds to its impressive 5050 line-up of high efficacy performance combined with DLC Premium Lifetime.
This OSCONIQ S 5050 leadframe package brings its Robust ness stability to another level with a Superior Corrosion protection that further enhance the suitability for Outdoor Professional lighting.
Applications
– Indoor Lighting – Outdoor & Industrial Lighting
Features
– Package: white SMT package, colored diffused resin
– Typ. Radiation: 120° (Lambertian emitter)
– Color temperature: 2200K – 6500K
– CRI: 70 (min.), 72 (typ.), R9: -50 (min.)
– ESD: 8 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)
– Luminous Flux: typ. 223 lm @ 4000 K
– Luminous efficacy: typ. 224 lm/W @ 4000 K
| Emission Color | White | CRI | 70 |
| Power | 0.99 W (High) | Beam Angle | ∢ Typical 120° |
| Dimensions | l Typical 5.0 mm w Typical 5.0 mm h Typical 0.7 mm |
Brightness | Typical ΦV: 240 lm Typical IV: 79.5 cd Typical ΦE: 1520 mW Typical IE: 504 mW/sr |
| Operating Temperature | Top Minimum -40°C/Top Maximum 105°C |
| Product Category | Description | Order Code |
|---|---|---|
| GW Q9LR33.PM-L9M8-XX510-1 | ΦV = 170 … 260 lm, 2200 K (IF = 180 mA) | Q65113A4756 |
| GW Q9LR33.PM-M2N1-XX58-1 | ΦV = 190 … 290 lm, 2700 K (IF = 180 mA) | Q65113A4755 |
| GW Q9LR33.PM-M3N2-XX51-1 | ΦV = 200 … 300 lm, 6500 K (IF = 180 mA) | Q65113A4754 |
| GW Q9LR33.PM-M3N2-XX57-1 | ΦV = 200 … 300 lm, 3000 K (IF = 180 mA) | Q65113A4753 |
| GW Q9LR33.PM-M4N3-XX52-1 | ΦV = 210 … 310 lm, 5700 K (IF = 180 mA) | Q65113A4751 |
| GW Q9LR33.PM-M4N3-XX53-1 | ΦV = 210 … 310 lm, 5000 K (IF = 180 mA) | Q65113A4749 |
| GW Q9LR33.PM-M4N3-XX55-1 | ΦV = 210 … 310 lm, 4000 K (IF = 180 mA) | Q65113A4748 |
| GW Q9LR33.PM-M4N3-XX56-1 | ΦV = 210 … 310 lm, 3500 K (IF = 180 mA) | Q65113A4747 |
| GW Q9LR33.PM-M5N3-XX53-1 | ΦV = 220 … 310 lm, 5000 K (IF = 180 mA) | Q65113A4746 |
| GW Q9LR33.PM-M5N3-XX55-1 | ΦV = 220 … 310 lm, 4000 K (IF = 180 mA) | Q65113A4745 |
