Description

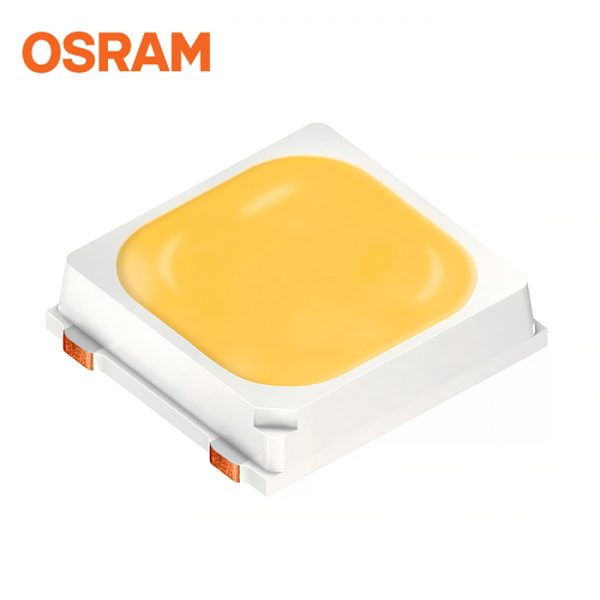

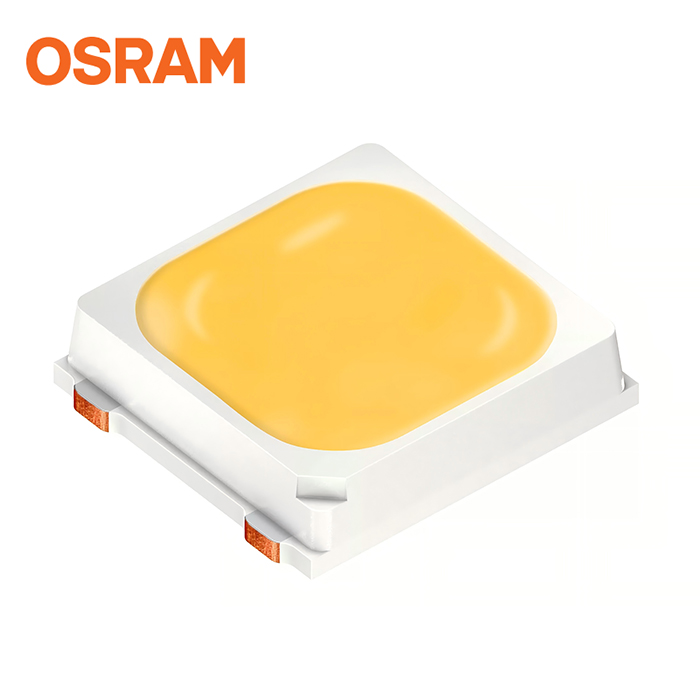

OSCONIQ™ S 3030 GW QSLMS3.EM
The OSCONIQ™ S 3030 is a high efficacy package for indoor professional applications. It uses sapphire flip chip technology to reach impressive performance and reliability and comes in a standard form factor to enable drop-in replacements.
Features
– Package: white SMT package
– Typ. Radiation: 120° (Lambertian emitter)
– Color temperature: 2200K – 6500K
– CRI: 80 (min.), R9: 0 (min.)
– ESD: 8 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)
– Luminous Flux: typ. 39.3 lm @ 4000 K
– Luminous Efficacy: typ. 224 lm/W @ 4000 K
– Application: Suitable for General Lighting
– Suitable for deep-dimming at 1mA driving current
| Emission Color | White | CRI | 80 |
| Power | 0.18 W (Mid) | Beam Angle | ∢ Typical 120° |
| Dimensions | l Typical 3.25 mm w Typical 3.25 mm h Typical 0.75 mm |
Brightness | Typical ΦV: 36 lm Typical IV: 11.9 cd Typical ΦE: 107 mW Typical IE: 35.2 mW/sr |
| Operating Temperature | Top Minimum -40°C/Top Maximum 105°C |
| Product Category | Description | Order Code |
|---|---|---|
| GW QSLMS3.EM-H2H5-XX510-1-TK | ΦV = 30.0 … 36.0 lm, Mountingmethode:SDCM 5, 2200 K (IF = 65 mA) | Q65113A9213 |
| GW QSLMS3.EM-H4H7-XX58-1-TK | ΦV = 33.0 … 39.0 lm, Mountingmethode:SDCM 5, 2700 K (IF = 65 mA) | Q65113A9265 |
| GW QSLMS3.EM-H5H8-XX57-1-TK | ΦV = 34.5 … 40.5 lm, Mountingmethode:SDCM 5, 3000 K (IF = 65 mA) | Q65113A9263 |
| GW QSLMS3.EM-H6H9-XX56-1-TK | ΦV = 36.0 … 42.0 lm, Mountingmethode:SDCM 5, 3500 K (IF = 65 mA) | Q65113A9261 |
| GW QSLMS3.EM-H7H9-XX51-1-TK | ΦV = 37.5 … 42.0 lm, Mountingmethode:SDCM 5, 6500 K (IF = 65 mA) | Q65113A9256 |
| GW QSLMS3.EM-H7H9-XX52-1-TK | ΦV = 37.5 … 42.0 lm, Mountingmethode:SDCM 5, 5700 K (IF = 65 mA) | Q65113A9255 |
| GW QSLMS3.EM-H7H9-XX53-1-TK | ΦV = 37.5 … 42.0 lm, Mountingmethode:SDCM 5, 5000 K (IF = 65 mA) | Q65113A9254 |
| GW QSLMS3.EM-H7H9-XX55-1-TK | ΦV = 37.5 … 42.0 lm, Mountingmethode:SDCM 5, 4000 K (IF = 65 mA) | Q65113A9253 |
