Description

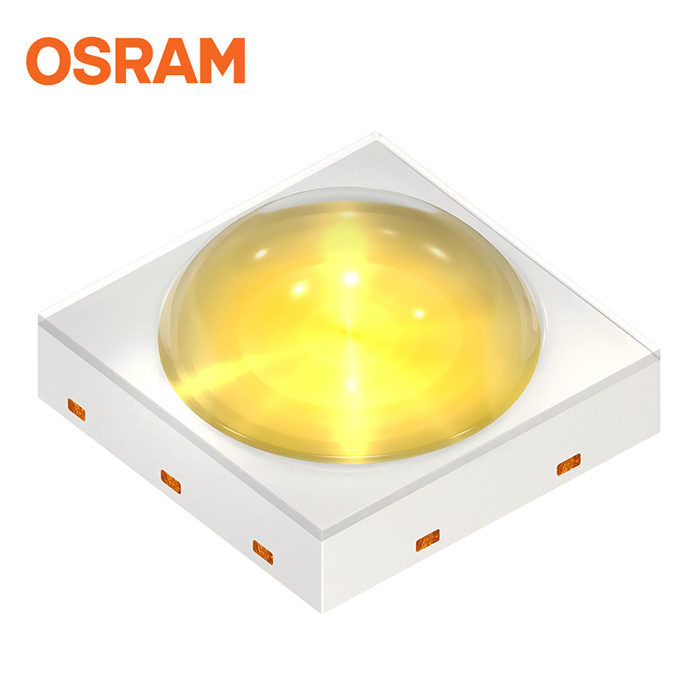

GW QSSPA1.PM OSCONIQ ® P 3030
High-power LED with high performance, superior robustness and long lifetime.
Applications
Architecture
Area Lights
Highbay Industrial
Portable LED Lighting
Street, Tunnel and Outdoor
Features
Package: New SMD epoxy package with silicone lens
Typ. Radiation: 120° (Lambertian emitter)
Corrosion Robustness Class: 3B
Color temperature: 2700K – 6500K
CRI: 70 (min.), 72 (typ.), R9: -50 (min.)
ESD: 8 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)
Luminous Flux: typ. 160 lm @ 5000 K, 85 °C
Luminous efficacy: typ. 160.4 lm/W @ 5000 K, 85 °C
| Emission Color | White | CRI | 70 |
| Power | 1.0 W (High) | Beam Angle | ∢ Typical 120° |
| Dimensions | l Typical 3.0 mm w Typical 3.0 mm h Typical 0.75 mm |
Brightness | Typical ΦV: 153 lm Typical IV: 46.2 cd Typical ΦE: 463 mW Typical IE: 140 mW/sr |
| Operating Temperature | Top Minimum -40°C/Top Maximum 125°C |
| Product Category | Description | Order Code |
|---|---|---|
| GW QSSPA1.PM-LDLJ-XX58-1 | ΦV = 125 … 157 lm, 2700 K (IF = 350 mA) | Q65112A9134 |
| GW QSSPA1.PM-LELK-XX57-1 | ΦV = 130 … 164 lm, 3000 K (IF = 350 mA) | Q65112A7474 |
| GW QSSPA1.PM-LGLN-XX51-1 | ΦV = 140 … 180 lm, 6500 K (IF = 350 mA) | Q65112A7615 |
| GW QSSPA1.PM-LGLN-XX52-1 | ΦV = 140 … 180 lm, 5700 K (IF = 350 mA) | Q65112A7477 |
| GW QSSPA1.PM-LGLN-XX53-1 | ΦV = 140 … 180 lm, 5000 K (IF = 350 mA) | Q65112A7472 |
| GW QSSPA1.PM-LGLN-XX54-1 | ΦV = 140 … 180 lm, 4500 K (IF = 350 mA) | Q65112A8260 |
| GW QSSPA1.PM-LGLN-XX55-1 | ΦV = 140 … 180 lm, 4000 K (IF = 350 mA) | Q65112A8261 |
| GW QSSPA1.PM-LGLN-XX56-1 | ΦV = 140 … 180 lm, 3500 K (IF = 350 mA) | Q65112A8262 |
