Description

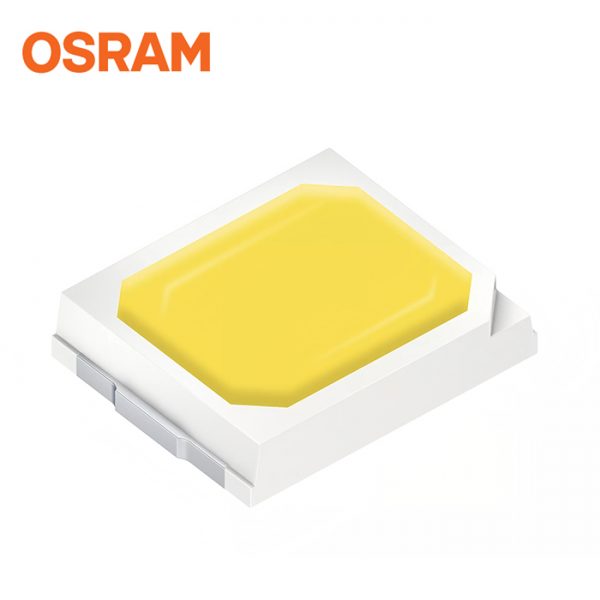

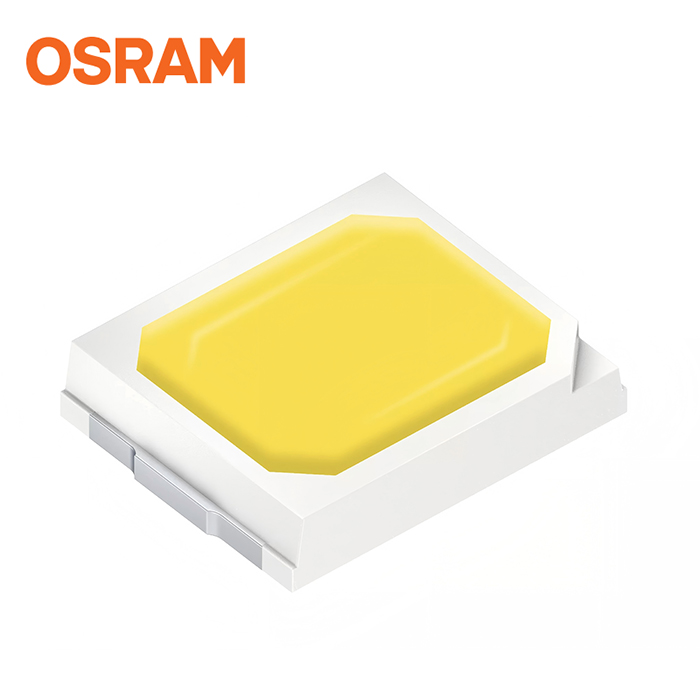

OSCONIQ® E 2835 GW QTLQS1.LM
The OSCONIQ® E 2835 Cyan Enhanced (4000K to 6500K) offers special spectrum to suppress production of melatonin & improve work alertness. The OSCONIQ® E 2835 Cozy Warm (1800K to 3000K) offers warm color points for indoor needs. This professional version of 2835 enables the drive into 3030 platform with better efficacy, equivalent lifetime & affordable price. With elevated lifetime supporting DLC premium & good reliability, OSCONIQ® E 2835 Cyan Enhanced & Cozy Warm offer best solutions in Human Centric Lighting application needs & enable lighting designer in circadian lighting design win.
Applications
– Entertainment
– Indoor Lighting
– Outdoor & Industrial Lighting
Features
– Package: white SMT package, colored diffused resin
– Typ. Radiation: 120° (Lambertian emitter)
– Color temperature: 1800K – 6500K
– CRI: 80 (min.), 82 (typ.), R9: 0 (min.)
– ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
– Luminous Flux: typ. 144 lm @ 4000 K
– Luminous efficacy: typ. 158 lm/W @ 4000 K
– Stable deep dimming at low driving current from 1mA
| Emission Color | White | CRI | 80 |
| Power | 0.91 W (High) | Beam Angle | ∢ Typical 120° |
| Dimensions | l Typical 3.5 mm w Typical 2.8 mm h Typical 0.7 mm |
Brightness | Typical ΦV: 130 lm Typical IV: 41.6 cd Typical ΦE: 399 mW Typical IE: 127 mW/sr Typical ΦP: 0.609 µmol/s |
| Operating Temperature | Top Minimum -40°C/Top Maximum 105°C |
| Product Category | Description | Order Code |
|---|---|---|
| GW QTLQS1.LM-K3K5-XX310-CD | ΦV = 115 … 130 lm, Mountingmethode:SDCM 3, 2200 K (IF = 150 mA) | Q65115A0714 |
| GW QTLQS1.LM-K3LW-XX510-1 | ΦV = 115 … 140 lm, Mountingmethode:SDCM 5, 2200 K (IF = 150 mA) | Q65113A8666 |
| GW QTLQS1.LM-K5LZ-XX57-1 | ΦV = 125 … 155 lm, Mountingmethode:SDCM 5, 3000 K (IF = 150 mA) | Q65113A3380 |
| GW QTLQS1.LM-KYK1-XX312-CD | ΦV = 95 … 110 lm, Mountingmethode:SDCM 3, 1800 K (IF = 150 mA) | Q65115A0713 |
| GW QTLQS1.LM-KYK3-XX512-1 | ΦV = 95 … 120 lm, Mountingmethode:SDCM 5, 1800 K (IF = 150 mA) | Q65113A9069 |
| GW QTLQS1.LM-LVL1-XX51-1 | ΦV = 130 … 160 lm, Mountingmethode:SDCM 5, 6500 K (IF = 150 mA) | Q65113A3379 |
| GW QTLQS1.LM-LVL1-XX52-1 | ΦV = 130 … 160 lm, Mountingmethode:SDCM 5, 5700 K (IF = 150 mA) | Q65113A3378 |
| GW QTLQS1.LM-LVL1-XX56-1 | ΦV = 130 … 160 lm, Mountingmethode:SDCM 5, 3500 K (IF = 150 mA) | Q65113A3381 |
| GW QTLQS1.LM-LVLX-XX31-CD | ΦV = 130 … 145 lm, Mountingmethode:SDCM 3, 6500 K (IF = 150 mA) | Q65115A0710 |
| GW QTLQS1.LM-LVLX-XX36-CD | ΦV = 130 … 145 lm, Mountingmethode:SDCM 3, 3500 K (IF = 150 mA) | Q65115A0717 |
| GW QTLQS1.LM-LVLX-XX38-CD | ΦV = 130 … 145 lm, Mountingmethode:SDCM 3, 2700 K (IF = 150 mA) | Q65115A0715 |
| GW QTLQS1.LM-LVLZ-XX58-1 | ΦV = 130 … 155 lm, Mountingmethode:SDCM 5, 2700 K (IF = 150 mA) | Q65113A8665 |
| GW QTLQS1.LM-LWL2-XX53-1 | ΦV = 135 … 165 lm, Mountingmethode:SDCM 5, 5000 K (IF = 150 mA) | Q65113A3377 |
| GW QTLQS1.LM-LWL2-XX55-1 | ΦV = 135 … 165 lm, Mountingmethode:SDCM 5, 4000 K (IF = 150 mA) | Q65113A3376 |
| GW QTLQS1.LM-LWLY-XX32-CD | ΦV = 135 … 150 lm, Mountingmethode:SDCM 3, 5700 K (IF = 150 mA) | Q65115A0720 |
| GW QTLQS1.LM-LWLY-XX33-CD | ΦV = 135 … 150 lm, Mountingmethode:SDCM 3, 5000 K (IF = 150 mA) | Q65115A0719 |
| GW QTLQS1.LM-LWLY-XX35-CD | ΦV = 135 … 150 lm, Mountingmethode:SDCM 3, 4000 K (IF = 150 mA) | Q65115A0718 |
| GW QTLQS1.LM-LWLY-XX37-CD | ΦV = 135 … 150 lm, Mountingmethode:SDCM 3, 3000 K (IF = 150 mA) | Q65115A0716 |
