Description

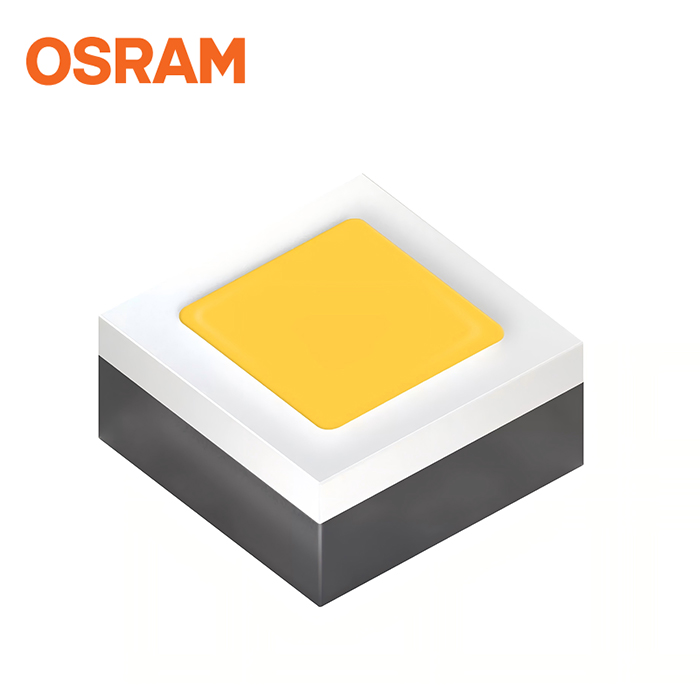

OSLON® Pure 1414 GW VJLPL1.PM
The OSLON Pure ® 1414, one of the best lumen density, excellent efficiency and color homogeneity.
The OSLON Pure ® 1414 come with full color spectrum and color temperature of 1800K to 6500K that enable customer to perform color tuning and tight clustering. It can be use stand alone as well as in cluster together to achieve the spectrum that you need.
Applications
– Appliances & Tools
– Entertainment
– Factory Automation
– Indoor Lighting
– Medical Lighting
– Outdoor & Industrial Lighting
– Projection & Display
– Robotics
Features
– Package: chip level conversion
– Typ. Radiation: 120° (Lambertian emitter)
– Color temperature: 1800K – 6500K
– CRI: 70 (min.), 72 (typ.), R9: -50 (min.)
– ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
– Luminous Flux: typ. 143 lm @ 4000 K, 85 °C
– Luminous efficacy: typ. 146 lm/W @ 4000 K, 85 °C
| Product Category | Description | Order Code |
|---|---|---|
| GW VJLPL1.PM-K1K4-XX512-1 | ΦV = 90 … 125 lm, 1800 K (IF = 350 mA) | Q65113A8214 |
| GW VJLPL1.PM-LWL3-XX51-1 | ΦV = 135 … 170 lm, 6500 K (IF = 350 mA) | Q65113A8213 |
| GW VJLPL1.PM-LWL3-XX52-1 | ΦV = 135 … 170 lm, 5700 K (IF = 350 mA) | Q65113A8919 |
| GW VJLPL1.PM-LWL3-XX53-1 | ΦV = 135 … 170 lm, 5000 K (IF = 350 mA) | Q65113A8212 |
| GW VJLPL1.PM-LWL3-XX55-1 | ΦV = 135 … 170 lm, 4000 K (IF = 350 mA) | Q65113A8211 |
