Description

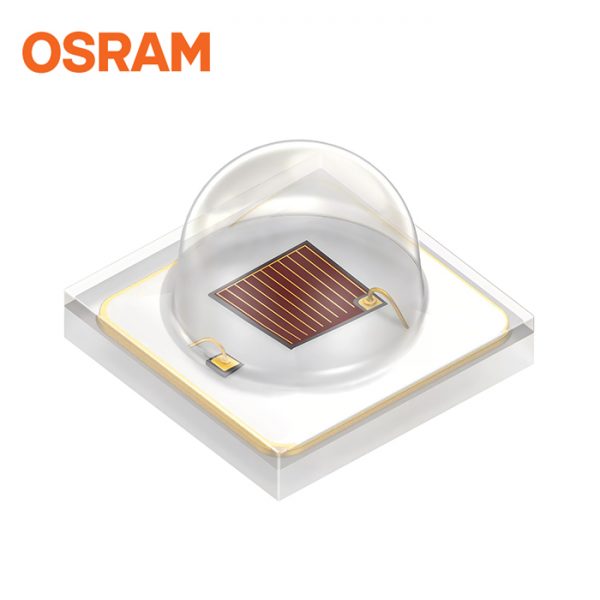

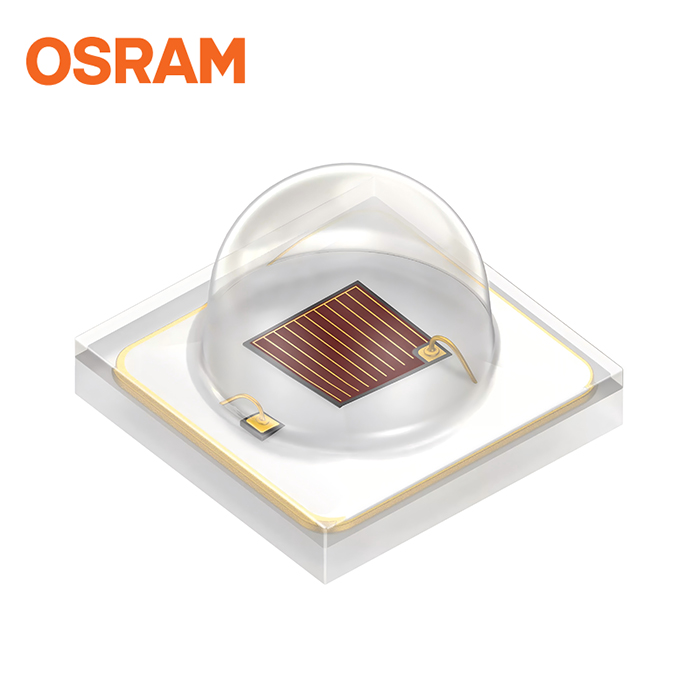

OSLON® SSL 80 GY CS8PM1.23
New, higher performing OSLON SSL family LED with well known superior robustness, high reliability, long lifetime, low thermal resistance. Perfectly addressing applications demanding for high efficiency and long lifetime requirement.
Applications
– Entertainment
– Indoor Lighting
– Outdoor & Industrial Lighting
Features
– Package: SMT ceramic package with silicone lens
– Typ. Radiation: 80°
– Lumen maintenance: Test results according to IESNA LM-80 available
– ESD: 8 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)
– Luminous Flux: typ. 81 lm
– Luminous efficacy:: typ. 105 lm/W
| Emission Color | Yellow (580-595 nm) | Operating Temperature | Top Minimum -40°C/Top Maximum 125°C |
| Power | 0.77 W (High) | Beam Angle | ∢ Typical 80° |
| Dimensions | l Typical 3.0 mm w Typical 3.0 mm h Typical 0.21 mm |
Brightness | Typical ΦV: 76 lm Typical IV: 45.7 cd Typical ΦE: 154 mW Typical IE: 92.5 mW/sr |
| Product Category | Description | Order Code |
|---|---|---|
| GY CS8PM1.23-KQKS-36 | ΦV = 76.3 … 97.0 lm (IF = 350 mA) | Q65112A0766 |
