Description

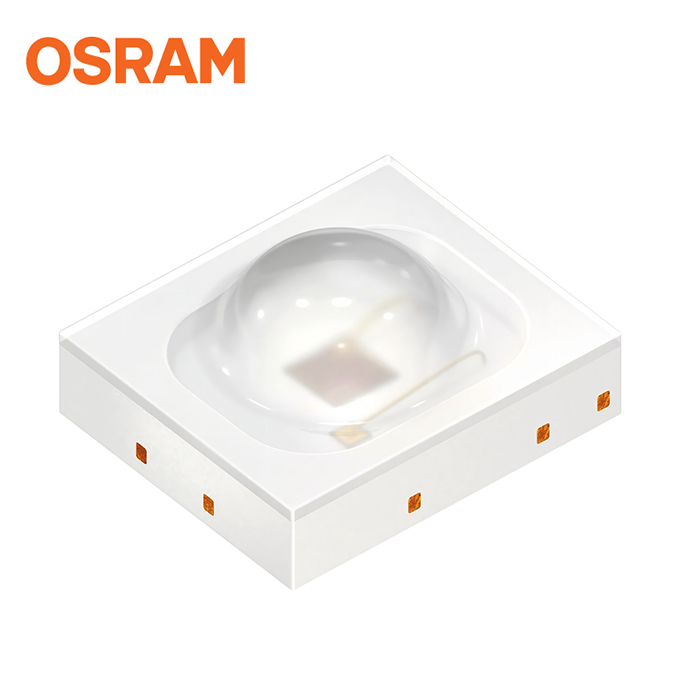

GY DASPA2.23 OSCONIQ ® P 2226
High-efficacy mid-power LED with long lifetimes also at high currents and high junction temperatures.
Applications
Architecture
Architecture / Garden Lighting (LED & Laser)
Medical Illumination
Photo Therapy
Features
Package: SMT package
Typ. Radiation: 120° (Lambertian emitter)
ESD: 8 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)
Luminous Flux: typ. 18.8 lm
Luminous efficacy: typ. 88 lm/W
| Emission Color | Yellow (580-595 nm) | Operating Temperature | Top Minimum -40°C/Top Maximum 120°C |
| Power | 0.22 W (Mid) | Beam Angle | ∢ Typical 120° |
| Dimensions | l Typical 2.6 mm w Typical 2.2 mm h Typical 1.25 mm |
Brightness | Typical ΦV: 16 lm Typical IV: 5 cd Typical ΦE: 31.9 mW Typical IE: 9.97 mW/sr |
| Product Category | Description | Order Code |
|---|---|---|
| GY DASPA2.23-FSFU-35-FH | ΦV = 14 … 18 lm (IF = 100 mA) | Q65112A3462 |
| GY DASPA2.23-FUGR-35-FH | ΦV = 16 … 22 lm (IF = 100 mA) | Q65112A6653 |
