Description
GY PSLM31.13 DURIS ® S 5

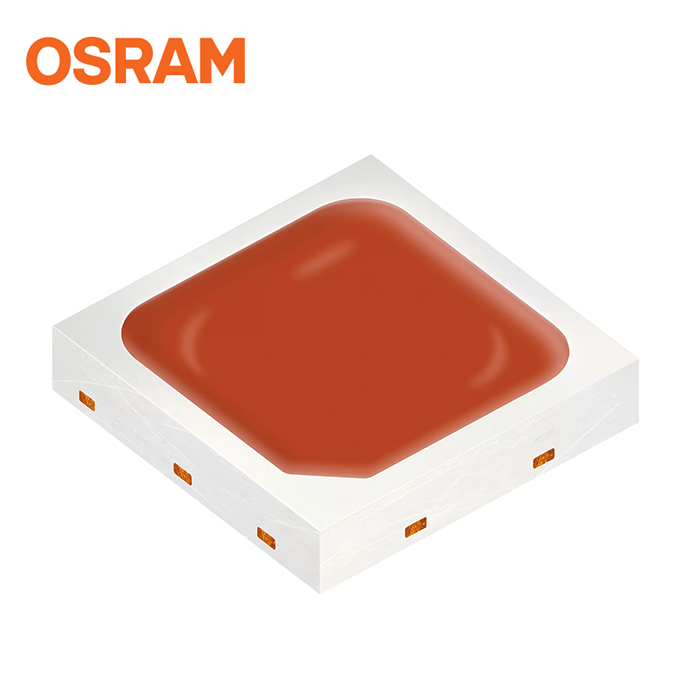

The compact, mid-power Duris® S 5 LED with in- dustry standard 3030 package that comes with high efficacy, color quality and long lifetime. Ideal choice for indoor General Lighting applications.
Applications
– Architecture
– Architecture / Garden Lighting (LED & Laser)
– Medical Illumination
– Mood Lighting
– Photo Therapy
Features
– Package: white SMT package, colored diffused resin
– Typ. Radiation: 120° (Lambertian emitter)
– Lumen maintenance: LM-80-15 in progress
– ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
– Luminous Flux: typ. 36 lm
– Luminous efficacy: typ. 118 lm/W
| Emission Color | Yellow (580-595 nm) | Operating Temperature | Top Minimum -40°C/Top Maximum 100°C |
| Power | 0.3 W (Mid) | Beam Angle | ∢ Typical 120° |
| Dimensions | l Typical 3.0 mm w Typical 3.0 mm h Typical 0.6 mm |
Brightness | Typical ΦV: 34.5 lm Typical IV: 11.7 cd Typical ΦE: 122 mW Typical IE: 41.2 mW/sr |
| Product Category | Description | Order Code |
|---|---|---|
| GY PSLM31.13-HQHS-5F5G-L2M2 | ΦV = 30 … 39 lm (IF = 100 mA) | Q65112A6291 |
