Description

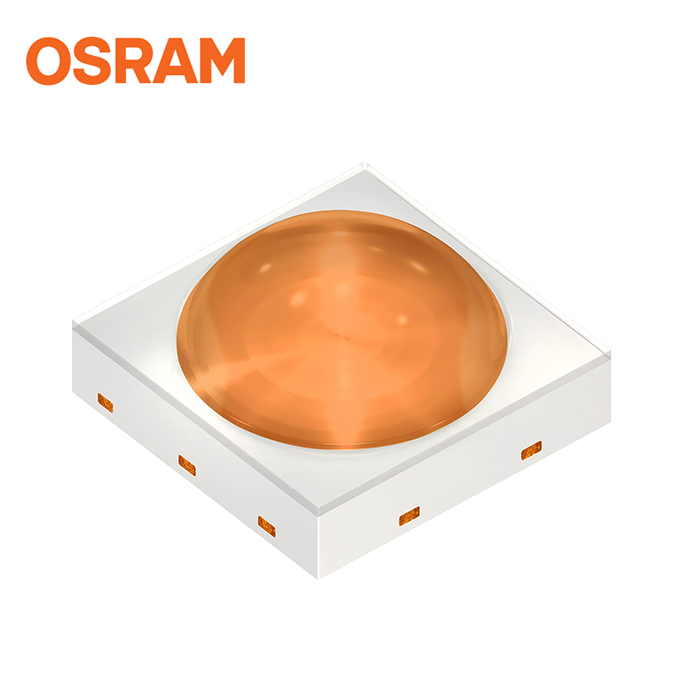

OSCONIQ® P 3030 GY QSSPA1.13
The OSCONIQ P 3030 Colors family LED comes with well known superior robustness, high reliability, long lifetime, low thermal resistance. Compact and proven 3mm x 3mm package and established footprint. Perfectly addressing applications that demand for high efficiency and long lifetime.
Applications
– Agriculture & Horticulture
– Entertainment
– Indoor Lighting
– Outdoor & Industrial Lighting
Features
– Package: SMD epoxy package
– Typ. Radiation: 120° (Lambertian emitter)
– ESD: 8 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)
– Luminous Flux: typ. 100 lm
– Luminous Efficacy: typ. 98 lm/W
| Emission Color | Yellow (580-595 nm) | Operating Temperature | Top Minimum -40°C/Top Maximum 125°C |
| Power | 1 W (High) | Beam Angle | ∢ Typical 120° |
| Dimensions | l Typical 3.0 mm w Typical 3.0 mm h Typical 0.75 mm |
Brightness | Typical ΦV: 101 lm Typical IV: 30.8 cd Typical ΦE: 354 mW Typical IE: 108 mW/sr |
| Product Category | Description | Order Code |
|---|---|---|
| GY QSSPA1.13-KSKU-5F5G-1 | ΦV = 89.2 … 112.0 lm (IF = 350 mA) | Q65112A9196 |
