Description

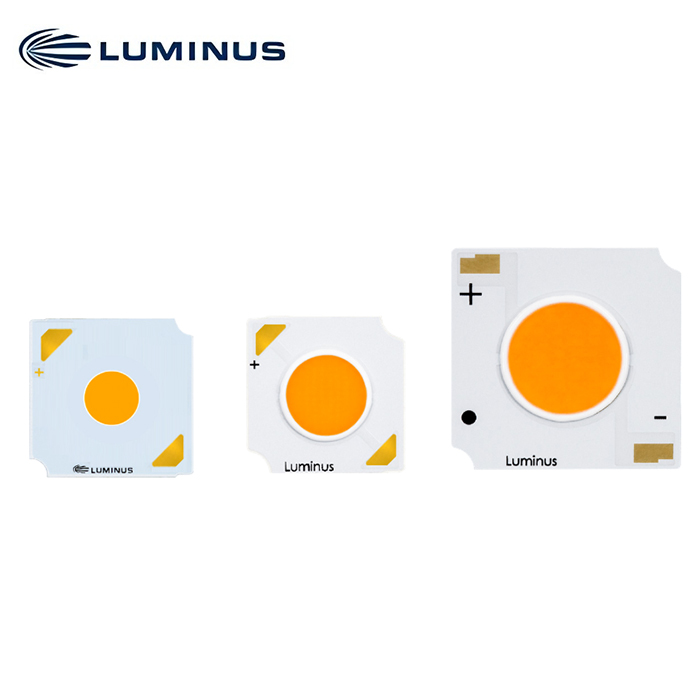

HIGH DENSITY GEN 4
Designed for the highest lumen density per emitter area providing highest center-beam-candle-power (CBCP).
APPLICATIONS
- Retail/Commercial
- Track/Spot
- Accent Lighting
FEATURES
- Robusto technology for industry-leading lumen maintenance and color stability over time at high current and up to Tc = 120°C
- Wide CCT and CRI selection
- >35,000 cd in 10° spot
- Lumen Density >7,000 lm/cm2
BENEFITS
- All the color quality of Standard Gen 4 COBs and with higher lumen density
- High lumen density allows a smaller optic and/or smaller beam spot
- Replicates the lumen punch of Metal Halide light sources
PRODUCT SELECTOR
Need a help to select product?Lumen Calculator for COB Arrays
| Product Image | Product Family | LES (mm) | Substrate Size (mm) | Power Range (W) | Flux Range @ 3000K 80CRI |
|---|---|---|---|---|---|
 |
CHM-4-BH | 4.5 | 13.5 * 13.5 | 7.5 – 13.7 | 775 – 1350 |
 |
CHM-6-BH | 6.3 | 13.5 * 13.5 | 15.2 – 27.2 | 1560 – 2570 |
 |
CHM-9-BH | 9 | 19 * 19 | 24.3 – 57 | 2840 – 5250 |
Ordering Part Numbers
The following tables describe products with typical flux and minimum flux measured at 200mA and specified at Tj = 85ºC. The values at 25ºC are calculated and shown for reference only.
| CCT | Output Flux (lm) | Color
Rendering Index (min.) |
Ordering Part Number | |||
| Typ.
(85ºC) |
Min.
(85ºC) |
Calculated
Typ. (25ºC) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 2200K | 530 | 490 | 585 | 90 | CHM-4-22-90-36-BH40-F5-3 | CHM-4-22-90-36-BH40-F5-2 |
| 2400K | 600 | 560 | 660 | 90 | CHM-4-24-90-36-BH40-F5-3 | CHM-4-24-90-36-BH40-F5-2 |
| 2700K | 720 | 670 | 790 | 80 | CHM-4-27-80-36-BH40-F5-3 | CHM-4-27-80-36-BH40-F5-2 |
| 630 | 585 | 695 | 90 | CHM-4-27-90-36-BH40-F5-3 | CHM-4-27-90-36-BH40-F5-2 | |
| 525 | 490 | 580 | 95 | CHM-4-27-95-36-BH40-F5-3 | CHM-4-27-95-36-BH40-F5-2 | |
| 2700KSensus | 615 | 570 | 675 | 90 | CHM-4-27-90-36-BH42-F5-3 | CHM-4-27-90-36-BH42-F5-2 |
| 3000K | 755 | 700 | 830 | 80 | CHM-4-30-80-36-BH40-F5-3 | CHM-4-30-80-36-BH40-F5-2 |
| 655 | 610 | 720 | 90 | CHM-4-30-90-36-BH40-F5-3 | CHM-4-30-90-36-BH40-F5-2 | |
| 565 | 525 | 620 | 95 | CHM-4-30-95-36-BH40-F5-3 | CHM-4-30-95-36-BH40-F5-2 | |
| 3000KSensus | 640 | 595 | 705 | 90 | CHM-4-30-90-36-BH42-F5-3 | CHM-4-30-90-36-BH42-F5-2 |
| 550 | 510 | 605 | 95 | CHM-4-30-95-36-BH42-F5-3 | CHM-4-30-95-36-BH42-F5-2 | |
| 3500K | 800 | 745 | 880 | 80 | CHM-4-35-80-36-BH40-F5-3 | CHM-4-35-80-36-BH40-F5-2 |
| 655 | 610 | 720 | 90 | CHM-4-35-90-36-BH40-F5-3 | CHM-4-35-90-36-BH40-F5-2 | |
| 550 | 510 | 605 | 95 | CHM-4-35-95-36-BH40-F5-3 | CHM-4-35-95-36-BH40-F5-2 | |
| 3500KSensus | 640 | 595 | 705 | 90 | CHM-4-35-90-36-BH42-F5-3 | CHM-4-35-90-36-BH42-F5-2 |
| 4000K | 775 | 720 | 855 | 80 | CHM-4-40-80-36-BH40-F5-3 | CHM-4-40-80-36-BH40-F5-2 |
| 705 | 655 | 775 | 90 | CHM-4-40-90-36-BH40-F5-3 | CHM-4-40-90-36-BH40-F5-2 | |
| 620 | 575 | 680 | 95 | CHM-4-40-95-36-BH40-F5-3 | CHM-4-40-95-36-BH40-F5-2 | |
| 5000K | 790 | 735 | 870 | 80 | CHM-4-50-80-36-BH40-F5-3 | CHM-4-50-80-36-BH40-F5-2 |
| 705 | 655 | 775 | 90 | CHM-4-50-90-36-BH40-F5-3 | CHM-4-50-90-36-BH40-F5-2 | |
| 620 | 575 | 680 | 95 | CHM-4-50-95-36-BH40-F5-3 | CHM-4-50-95-36-BH40-F5-2 | |
Ordering Part Numbers
The following tables describe products with typical flux and minimum flux measured at 400mA and specified at Tj = 85ºC. The values at 25ºC are calculated and shown for reference only.
| CCT | Output Flux (lm) | Color
Rendering Index (min.) |
Ordering Part Number | |||
| Typ.
(85ºC) |
Min.
(85ºC) |
Calculated
Typ. (25ºC) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 2200K | 530 | 490 | 585 | 90 | CHM-4-22-90-18-BH40-F5-3 | CHM-4-22-90-18-BH40-F5-2 |
| 2400K | 600 | 560 | 660 | 90 | CHM-4-24-90-18-BH40-F5-3 | CHM-4-24-90-18-BH40-F5-2 |
| 2700K | 720 | 670 | 790 | 80 | CHM-4-27-80-18-BH40-F5-3 | CHM-4-27-80-18-BH40-F5-2 |
| 630 | 585 | 695 | 90 | CHM-4-27-90-18-BH40-F5-3 | CHM-4-27-90-18-BH40-F5-2 | |
| 525 | 490 | 580 | 95 | CHM-4-27-95-18-BH40-F5-3 | CHM-4-27-95-18-BH40-F5-2 | |
| 2700KSensus | 615 | 570 | 675 | 90 | CHM-4-27-90-18-BH42-F5-3 | CHM-4-27-90-18-BH42-F5-2 |
| 3000K | 755 | 700 | 830 | 80 | CHM-4-30-80-18-BH40-F5-3 | CHM-4-30-80-18-BH40-F5-2 |
| 655 | 610 | 720 | 90 | CHM-4-30-90-18-BH40-F5-3 | CHM-4-30-90-18-BH40-F5-2 | |
| 565 | 525 | 620 | 95 | CHM-4-30-95-18-BH40-F5-3 | CHM-4-30-95-18-BH40-F5-2 | |
| 3000KSensus | 640 | 595 | 705 | 90 | CHM-4-30-90-18-BH42-F5-3 | CHM-4-30-90-18-BH42-F5-2 |
| 550 | 510 | 605 | 95 | CHM-4-30-95-18-BH42-F5-3 | CHM-4-30-95-18-BH42-F5-2 | |
| 3500K | 800 | 745 | 880 | 80 | CHM-4-35-80-18-BH40-F5-3 | CHM-4-35-80-18-BH40-F5-2 |
| 655 | 610 | 720 | 90 | CHM-4-35-90-18-BH40-F5-3 | CHM-4-35-90-18-BH40-F5-2 | |
| 550 | 510 | 605 | 95 | CHM-4-35-95-18-BH40-F5-3 | CHM-4-35-95-18-BH40-F5-2 | |
| 3500KSensus | 640 | 595 | 705 | 90 | CHM-4-35-90-18-BH42-F5-3 | CHM-4-35-90-18-BH42-F5-2 |
| 4000K | 775 | 720 | 855 | 80 | CHM-4-40-80-18-BH40-F5-3 | CHM-4-40-80-18-BH40-F5-2 |
| 705 | 655 | 775 | 90 | CHM-4-40-90-18-BH40-F5-3 | CHM-4-40-90-18-BH40-F5-2 | |
| 620 | 575 | 680 | 95 | CHM-4-40-95-18-BH40-F5-3 | CHM-4-40-95-18-BH40-F5-2 | |
| 5000K | 790 | 735 | 870 | 80 | CHM-4-50-80-18-BH40-F5-3 | CHM-4-50-80-18-BH40-F5-2 |
| 705 | 655 | 775 | 90 | CHM-4-50-90-18-BH40-F5-3 | CHM-4-50-90-18-BH40-F5-2 | |
| 620 | 575 | 680 | 95 | CHM-4-50-95-18-BH40-F5-3 | CHM-4-50-95-18-BH40-F5-2 | |
Ordering Part Numbers
The following tables describe products with typical flux and minimum flux measured at 400mA and specified at Tj = 85ºC. The values at 25ºC are calculated and shown for reference only.
| CCT | Output Flux (lm) | Color
Rendering Index (min.) |
Ordering Part Number | |||
| Typ.
(85ºC) |
Min.
(85ºC) |
Calculated
Typ. (25ºC) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 2200K | 1165 | 1085 | 1285 | 90 | CHM-6-22-90-36-BH40-F5-3 | CHM-6-22-90-36-BH40-F5-2 |
| 2400K | 1240 | 1150 | 1360 | 90 | CHM-6-24-90-36-BH40-F5-3 | CHM-6-24-90-36-BH40-F5-2 |
| 2700K | 1490 | 1385 | 1640 | 80 | CHM-6-27-80-36-BH40-F5-3 | CHM-6-27-80-36-BH40-F5-2 |
| 1300 | 1205 | 1430 | 90 | CHM-6-27-90-36-BH40-F5-3 | CHM-6-27-90-36-BH40-F5-2 | |
| 1085 | 1010 | 1195 | 95 | CHM-6-27-95-36-BH40-F5-3 | CHM-6-27-95-36-BH40-F5-2 | |
| 2700KSensus | 1260 | 1175 | 1385 | 90 | CHM-6-27-90-36-BH42-F5-3 | CHM-6-27-90-36-BH42-F5-2 |
| 3000K | 1560 | 1450 | 1715 | 80 | CHM-6-30-80-36-BH40-F5-3 | CHM-6-30-80-36-BH40-F5-2 |
| 1355 | 1260 | 1490 | 90 | CHM-6-30-90-36-BH40-F5-3 | CHM-6-30-90-36-BH40-F5-2 | |
| 1170 | 1085 | 1285 | 95 | CHM-6-30-95-36-BH40-F5-3 | CHM-6-30-95-36-BH40-F5-2 | |
| 3000KSensus | 1315 | 1220 | 1445 | 90 | CHM-6-30-90-36-BH42-F5-3 | CHM-6-30-90-36-BH42-F5-2 |
| 1135 | 1055 | 1250 | 95 | CHM-6-30-95-36-BH42-F5-3 | CHM-6-30-95-36-BH42-F5-2 | |
| 3500K | 1655 | 1540 | 1820 | 80 | CHM-6-35-80-36-BH40-F5-3 | CHM-6-35-80-36-BH40-F5-2 |
| 1350 | 1255 | 1485 | 90 | CHM-6-35-90-36-BH40-F5-3 | CHM-6-35-90-36-BH40-F5-2 | |
| 1300 | 1205 | 1430 | 95 | CHM-6-35-95-36-BH40-F5-3 | CHM-6-35-95-36-BH40-F5-2 | |
| 3500KSensus | 1310 | 1215 | 1440 | 90 | CHM-6-35-90-36-BH42-F5-3 | CHM-6-35-90-36-BH42-F5-2 |
| 4000K | 1605 | 1495 | 1765 | 80 | CHM-6-40-80-36-BH40-F5-3 | CHM-6-40-80-36-BH40-F5-2 |
| 1465 | 1360 | 1610 | 90 | CHM-6-40-90-36-BH40-F5-3 | CHM-6-40-90-36-BH40-F5-2 | |
| 1285 | 1195 | 1410 | 95 | CHM-6-40-95-36-BH40-F5-3 | CHM-6-40-95-36-BH40-F5-2 | |
| 5000K | 1635 | 1520 | 1800 | 80 | CHM-6-50-80-36-BH40-F5-3 | CHM-6-50-80-36-BH40-F5-2 |
| 1490 | 1385 | 1640 | 90 | CHM-6-50-90-36-BH40-F5-3 | CHM-6-50-90-36-BH40-F5-2 | |
| 1290 | 1200 | 1415 | 95 | CHM-6-50-95-36-BH40-F5-3 | CHM-6-50-95-36-BH40-F5-2 | |
Ordering Part Numbers
The following tables describe products with typical flux and minimum flux measured at 800mA and specified at Tj = 85ºC. The values at 25ºC are calculated and shown for reference only.
| CCT | Output Flux (lm) | Color
Rendering Index (min.) |
Ordering Part Number | |||
| Typ.
(85ºC) |
Min.
(85ºC) |
Calculated
Typ. (25ºC) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 2200K | 1165 | 1085 | 1285 | 90 | CHM-6-22-90-18-BH40-F5-3 | CHM-6-22-90-18-BH40-F5-2 |
| 2400K | 1240 | 1150 | 1360 | 90 | CHM-6-24-90-18-BH40-F5-3 | CHM-6-24-90-18-BH40-F5-2 |
| 2700K | 1490 | 1385 | 1640 | 80 | CHM-6-27-80-18-BH40-F5-3 | CHM-6-27-80-18-BH40-F5-2 |
| 1300 | 1205 | 1430 | 90 | CHM-6-27-90-18-BH40-F5-3 | CHM-6-27-90-18-BH40-F5-2 | |
| 1085 | 1010 | 1195 | 95 | CHM-6-27-95-18-BH40-F5-3 | CHM-6-27-95-18-BH40-F5-2 | |
| 2700KSensus | 1260 | 1175 | 1385 | 90 | CHM-6-27-90-18-BH42-F5-3 | CHM-6-27-90-18-BH42-F5-2 |
| 3000K | 1560 | 1450 | 1715 | 80 | CHM-6-30-80-18-BH40-F5-3 | CHM-6-30-80-18-BH40-F5-2 |
| 1355 | 1260 | 1490 | 90 | CHM-6-30-90-18-BH40-F5-3 | CHM-6-30-90-18-BH40-F5-2 | |
| 1170 | 1085 | 1285 | 95 | CHM-6-30-95-18-BH40-F5-3 | CHM-6-30-95-18-BH40-F5-2 | |
| 3000KSensus | 1315 | 1220 | 1445 | 90 | CHM-6-30-90-18-BH42-F5-3 | CHM-6-30-90-18-BH42-F5-2 |
| 1135 | 1055 | 1250 | 95 | CHM-6-30-95-18-BH42-F5-3 | CHM-6-30-95-18-BH42-F5-2 | |
| 3500K | 1655 | 1540 | 1820 | 80 | CHM-6-35-80-18-BH40-F5-3 | CHM-6-35-80-18-BH40-F5-2 |
| 1350 | 1255 | 1485 | 90 | CHM-6-35-90-18-BH40-F5-3 | CHM-6-35-90-18-BH40-F5-2 | |
| 1300 | 1205 | 1430 | 95 | CHM-6-35-95-18-BH40-F5-3 | CHM-6-35-95-18-BH40-F5-2 | |
| 3500KSensus | 1310 | 1215 | 1440 | 90 | CHM-6-35-90-18-BH42-F5-3 | CHM-6-35-90-18-BH42-F5-2 |
| 4000K | 1605 | 1495 | 1765 | 80 | CHM-6-40-80-18-BH40-F5-3 | CHM-6-40-80-18-BH40-F5-2 |
| 1465 | 1360 | 1610 | 90 | CHM-6-40-90-18-BH40-F5-3 | CHM-6-40-90-18-BH40-F5-2 | |
| 1285 | 1195 | 1410 | 95 | CHM-6-40-95-18-BH40-F5-3 | CHM-6-40-95-18-BH40-F5-2 | |
| 5000K | 1635 | 1520 | 1800 | 80 | CHM-6-50-80-18-BH40-F5-3 | CHM-6-50-80-18-BH40-F5-2 |
| 1490 | 1385 | 1640 | 90 | CHM-6-50-90-18-BH40-F5-3 | CHM-6-50-90-18-BH40-F5-2 | |
| 1290 | 1200 | 1415 | 95 | CHM-6-50-95-18-BH40-F5-3 | CHM-6-50-95-18-BH40-F5-2 | |
Ordering Part Numbers
The following tables describe products with typical flux and minimum flux measured at 700mA and specified at Tj = 85ºC. The values at 25ºC are calculated and shown for reference only.
| CCT | Output Flux (lm) | Color
Rendering Index (min.) |
Ordering Part Number | |||
| Typ.
(85ºC) |
Min.
(85ºC) |
Calculated
Typ. (25ºC) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 2200K | 2060 | 1915 | 2265 | 90 | CHM-9-22-90-36-BH40-F5-3 | CHM-9-22-90-36-BH40-F5-2 |
| 2400K | 2255 | 2095 | 2480 | 90 | CHM-9-24-90-36-BH40-F5-3 | CHM-9-24-90-36-BH40-F5-2 |
| 2700K | 2715 | 2525 | 2985 | 80 | CHM-9-27-80-36-BH40-F5-3 | CHM-9-27-80-36-BH40-F5-2 |
| 2365 | 2200 | 2600 | 90 | CHM-9-27-90-36-BH40-F5-3 | CHM-9-27-90-36-BH40-F5-2 | |
| 1975 | 1835 | 2170 | 95 | CHM-9-27-95-36-BH40-F5-3 | CHM-9-27-95-36-BH40-F5-2 | |
| 2700KSensus | 2305 | 2140 | 2535 | 90 | CHM-9-27-90-36-BH42-F5-3 | CHM-9-27-90-36-BH42-F5-2 |
| 3000K | 2840 | 2640 | 3125 | 80 | CHM-9-30-80-36-BH40-F5-3 | CHM-9-30-80-36-BH40-F5-2 |
| 2470 | 2295 | 2715 | 90 | CHM-9-30-90-36-BH40-F5-3 | CHM-9-30-90-36-BH40-F5-2 | |
| 2125 | 1980 | 2340 | 95 | CHM-9-30-95-36-BH40-F5-3 | CHM-9-30-95-36-BH40-F5-2 | |
| 3000KSensus | 2405 | 2235 | 2645 | 90 | CHM-9-30-90-36-BH42-F5-3 | CHM-9-30-90-36-BH42-F5-2 |
| 2070 | 1925 | 2275 | 95 | CHM-9-30-95-36-BH42-F5-3 | CHM-9-30-95-36-BH42-F5-2 | |
| 3500K | 3010 | 2800 | 3310 | 80 | CHM-9-35-80-36-BH40-F5-3 | CHM-9-35-80-36-BH40-F5-2 |
| 2460 | 2290 | 2705 | 90 | CHM-9-35-90-36-BH40-F5-3 | CHM-9-35-90-36-BH40-F5-2 | |
| 2110 | 1960 | 2320 | 95 | CHM-9-35-95-36-BH40-F5-3 | CHM-9-35-95-36-BH40-F5-2 | |
| 3500KSensus | 2395 | 2225 | 2635 | 90 | CHM-9-35-90-36-BH42-F5-3 | CHM-9-35-90-36-BH42-F5-2 |
| 4000K | 2925 | 2720 | 3215 | 80 | CHM-9-40-80-36-BH40-F5-3 | CHM-9-40-80-36-BH40-F5-2 |
| 2665 | 2480 | 2930 | 90 | CHM-9-40-90-36-BH40-F5-3 | CHM-9-40-90-36-BH40-F5-2 | |
| 2335 | 2175 | 2570 | 95 | CHM-9-40-95-36-BH40-F5-3 | CHM-9-40-95-36-BH40-F5-2 | |
| 5000K | 2980 | 2770 | 3280 | 80 | CHM-9-50-80-36-BH40-F5-3 | CHM-9-50-80-36-BH40-F5-2 |
| 2715 | 2525 | 2985 | 90 | CHM-9-50-90-36-BH40-F5-3 | CHM-9-50-90-36-BH40-F5-2 | |
| 2345 | 2180 | 2580 | 95 | CHM-9-50-95-36-BH40-F5-3 | CHM-9-50-95-36-BH40-F5-2 | |
CHM-4 Operating Characteristics1
| Parameter-36V | Symbol | Minimum | Typical | Maximum | Unit |
| Forward Current2 | If | 200 | 500 | mA | |
| Forward Voltage3 | Vf | 31.0 | 35.3 | 39.0 | V |
| Parameter-18V | Symbol | Minimum | Typical | Maximum | Unit |
| Forward Current2 | If | 400 | 1000 | mA | |
| Forward Voltage3 | Vf | 15.4 | 17.6 | 19.5 | V |
| Parameter | Symbol | Minimum | Typical | Maximum | Unit |
| Power | 7.5 | 13.7 | W | ||
| Operating Case Temperature | T c | 120 | ºC | ||
| Light Emitting Surface Diameter | LES | 4.5 | mm | ||
| Thermal Resistance (junction-to-case) | Θjc | 1.7 | ºC/W | ||
| Junction Temperature | Tj | 140 | ºC | ||
| Viewing Angle | 120 | Degree |
HM-6 Operating Characteristics1
| Parameter-36V | Symbol | Minimum | Typical | Maximum | Unit |
| Forward Current2 | If | 400 | 750 | mA | |
| Forward Voltage3 | Vf | 31.0 | 35..3 | 38.5 | V |
| Parameter-18V | Symbol | Minimum | Typical | Maximum | Unit |
| Forward Current2 | If | 800 | 1500 | mA | |
| Forward Voltage3 | Vf | 15.4 | 17.6 | 19.2 | V |
| Parameter | Symbol | Minimum | Typical | Maximum | Unit |
| Power | 15.2 | 27.2 | W | ||
| Operating Case Temperature | T c | 120 | ºC | ||
| Light Emitting Surface Diameter | LES | 6.3 | mm | ||
| Thermal Resistance (junction-to-case) | Θjc | 1.0 | ºC/W | ||
| Junction Temperature | Tj | 140 | ºC | ||
| Viewing Angle | 120 | Degree |
CHM-9 Operating Characteristics1
| Parameter-36V | Symbol | Minimum | Typical | Maximum | Unit |
| Forward Current2 | If | 700 | 1500 | mA | |
| Forward Voltage3 | Vf | 31.3 | 34.8 | 38.0 | V |
| Parameter | Symbol | Minimum | Typical | Maximum | Unit |
| Power | 24.3 | 57 | W | ||
| Operating Case Temperature | T c | 120 | ºC | ||
| Light Emitting Surface Diameter | LES | 9.0 | mm | ||
| Thermal Resistance (junction-to-case) | Θjc | 0.5 | ºC/W | ||
| Junction Temperature | Tj | 0.63 | 140 | ºC | |
| Viewing Angle | 120 | Degree |
