Description
IR LEDS

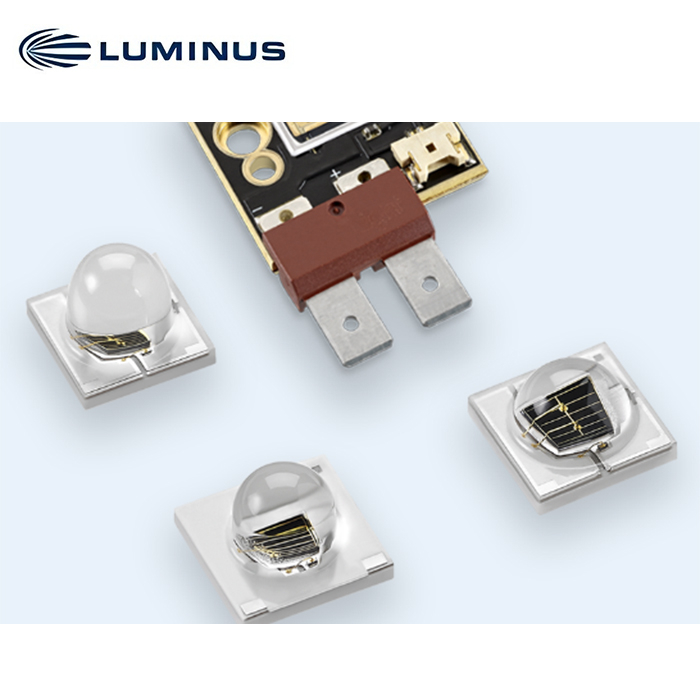

Luminus Infrared LEDs range in power from a few hundred mW to 10-15W CW and are designed for a variety of applications such as Surveillance Systems, Iris and Face Recognition, Night Vision as well as Machine Vision, Medical and Scientific Instrumentation. Luminus IR Product Portfolio spans the entire Near Infrared (NIR) wavelength range from 730nm to almost 1,000nm, includes both SMT and Chip-On-Board packaging solutions and a choice of beam angle options providing the perfect IR LED solution for narrow beam, distance and flood applications.
APPLICATIONS
- Surveillance Systems/CCTV
- Iris and Face Recognition
- License Plate Scanning
- Automotive Sensing
- Night Vision
- Replacement of legacy 5mm IR LEDs for improved designs
- Machine Vision
- Inspection
- Fiber-coupled Illumination
- Medical and Scientific Instrumentation
FEATURES
- Single and Dual Junction LEDs with high power density and uniform emission
- Offered in multiple wavelengths from 730nm to 940nm and in multiple viewing angles from 40 degrees to 130 degrees (lens type)
- High driven current density operation (up to 5A/mm2)
- Multiple package configurations (3.45mm x 3.45mm SMT or large copper-coreboard packages)
- Low Thermal Resistance
- RoHS and REACh compliant
Benefits
- Surface-Mount-Technology packages for cost-effective, compact high power IR LEDs
- Integrated Chip-On-Board design for ease of system integration and optimum cooling for demanding high-power density applications
- Ultra high radiant intensity (mW/sr) packaging solutions for IR systems requiring focused, long throw beams
PRODUCT SELECTOR GUIDE
| Product Image | Product Family | Peak Wavelength | Package | Max Drive Current |
Optical Power at Max Drive Current | Status |
|---|---|---|---|---|---|---|
 |
SST-05-IR-H | 850 nm | SMT 3.45 mm x 3.45 mm |
0.8 A(CW) | 695 mW | Active |
 |
SST-10-IR | 850 nm | SMT 3.45 mm x 3.45 mm |
1.5 A (CW) | 1.42 W | Active |
| 940 nm | ||||||
 |
SST-10-IRD-BxxH | 810 nm | SMT 3.45 mm x 3.45 mm |
1.5 A (CW) | 2.1 W | Active |
| 5 A (Pulsed) | 6.20 W | |||||
|
SST-10-IRD-BxxH | 850 nm | SMT 3.45 mm x 3.45 mm |
1.5 A (CW) | 2.56 W | Active |
| 5 A (Pulsed) | 6.92 W | |||||
|
SST-10-IRD-BxxH | 940 nm | SMT 3.45 mm x 3.45 mm |
1.5 A (CW) | 2.56 W | Active |
| 5 A (Pulsed) | 6.92 W | |||||
 |
SST-10-FR | 730 nm | SMT 3.45 mm x 3.45 mm |
1.5 A (CW) | 1.27 W | Active |
 |
CBM-90-IRD | 780 nm | Core Board 28.00 mm x 26.75 mm |
18 A (CW) | 12.5 W | Active |
|
CBM-90-IRD | 860 nm | Core Board 28.00 mm x 26.75 mm |
18 A (CW) | 16.1 W | Active |
|
CBM-90-IRD | 950 nm | Core Board 28.00 mm x 26.75 mm |
18 A (CW) | 16.1 W | Active |
 |
CBM-120-FR | 730 nm | Core Board 28.00 mm x 26.75 mm |
18 A (CW) | 13.3 W | Active |
 |
SST-05-IR | 850 nm | SMT 3.45 mm x 3.45 mm |
1 A(CW) | 942 mW | Not recommended for new designs. Consider SST-05-IR-H as a replacement |
