Description

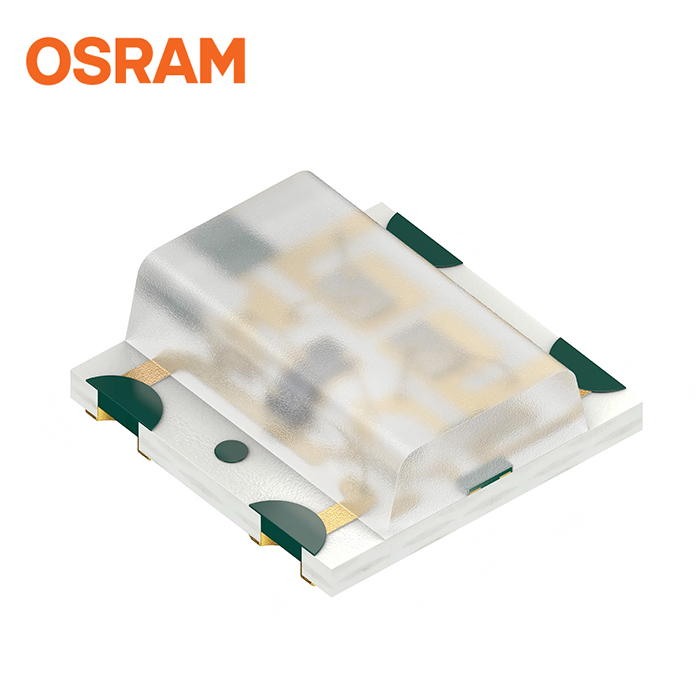

Multi Chip LED KRTBEILQ51.3A
This white-binned RGB LED is finished with a clear casting which leads to very high brightness. All chips can be controlled separately to display various colors including white. Equipped with a silicone lens this device is designed to reliably support long lifetime applications.
Applications
– Entertainment
Features
– Package: SMT package, clear silicone resin
– Chip technology: InGaAlP on Sapphire / InGaN on Sapphire
– Typ. Radiation: 120° (Lambertian emitter)
– Color: λdom = 623 nm (● red); λdom = 526 nm (● true green); λdom = 470 nm (● blue)
– ESD: 500 V acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 1B)
| Emission Color | Red (612-630 nm)
True Green (513-545 nm) Blue (450-480 nm) |
Operating Temperature | Top Minimum -40°C
Top Maximum 85°C |
| Power | 0.042 W (Low)
0.054 W (Low) 0.027 W (Low) |
Beam Angle | ∢ Typical 120° |
| Dimensions | l Typical 1.6 mm w Typical 1.6 mm h Typical 0.6 mm |
Brightness | Typical ΦV: 8.88 lm Typical IV: 2.48 cd Typical ΦE: 41.6 mW Typical IE: 11.6 mW/sr |
| Product Category | Description | Order Code |
|---|---|---|
| KRTBEILQ51.3A-5B5C-0112-0-R18 | Iv = ● Iv = 1800 … 3150 mcd (IF = 20 mA) | Q65112A8566 |
