OSLON® Square Flat KW CSLPM2.PC

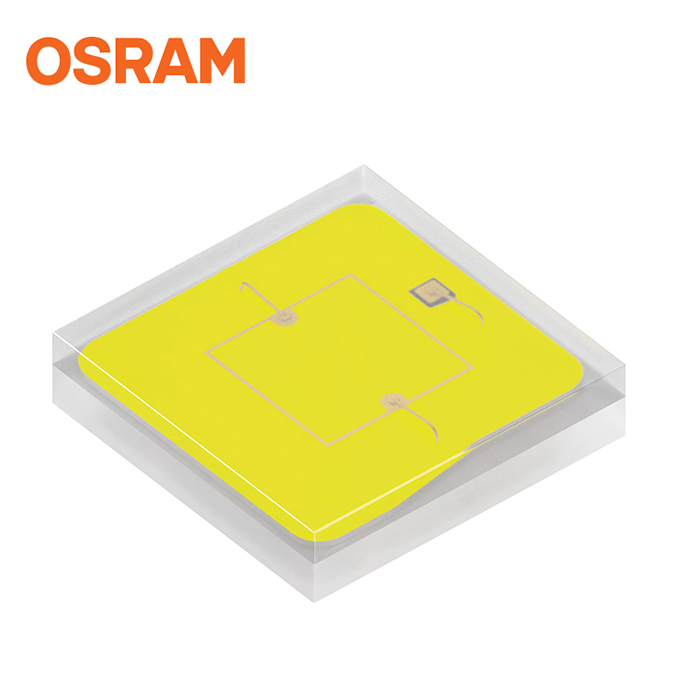

The most compact 3 x 3 mm high power LED with an electrically isolated thermal pad allows for superior heat dissipation designs. The flat package shape enhances color homogeneity due to reduced color over angle variation. Extremely low thermal resistance helps to maintain the efficiency remarkably high even when driven at higher currents.
Applications
– Entertainment
– Transportation
Features
– Package: Ceramic package
– Chip technology: UX:3
– Typ. Radiation: 120° (Lambertian emitter)
– Color: Cx = 0.32, Cy = 0.33 acc. to CIE 1931 (● white)
– Corrosion Robustness Class: 2B
– Color temperature: 5000K – 6500K
– CRI: 70 (typ.)
– ESD: 8 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)
| Emission Color | White | Operating Temperature | Top Minimum -40°C/Top Maximum 125°C |
| Power | 2.0 W (High) | Beam Angle | ∢ Typical 120° |
| Dimensions | l Typical 3.0 mm w Typical 3.0 mm h Typical 0.76 mm |
Brightness | Typical ΦV: 312 lm Typical IV: 98.5 cd Typical ΦE: 970 mW Typical IE: 306 mW/sr |
| Product Category | Description | Order Code |
|---|---|---|
| KW CSLPM2.PC-7M7N-4C8E | ΦV = 224 … 400 lm, 6500 K (IF = 700 mA) | Q65112A2444 |
| KW CSLPM2.PC-7M7N-4F8G | ΦV = 224 … 400 lm, 5700 K (IF = 700 mA) | Q65112A2577 |
| KW CSLPM2.PC-7M7N-4H8I | ΦV = 224 … 400 lm, 5000 K (IF = 700 mA) | Q65112A7975 |
