Description

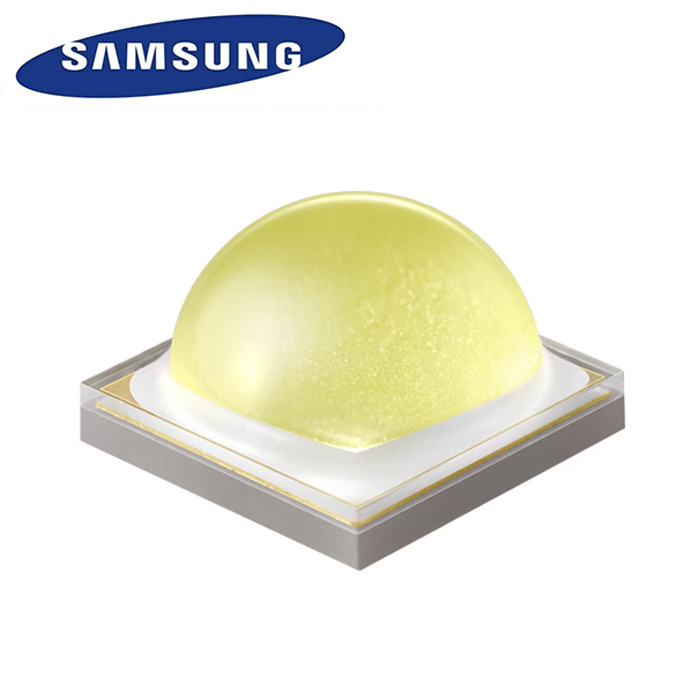

High Power LED Series 3535 Ceramic Hot Binning
- Wattage (Max) : 9.8 W @ 3.0 A
- Luminous Flux: 515 lm @ 1050 mA
- Luminous Efficacy: 170 lm/W
Features & Benefits
• Operates at a maximum current of up to 3.0 A
• Uniform light distribution under any beam angle
• 90 CRI makes it well suited for most applications
• Hot binning @ 85 ºC
Applications
• Indoor Lighting: Spotlight, Downlight
• Outdoor Lighting: Street Light, Tunnel Light, Security Light, Area Light, Stadium/Arena Light
• Industrial Lighting: High Bay Light, Low Bay Light
• Consumer Lighting: Torch Light
High efficacy and high quality color rendering makes the LH351D suitable use in a broad range of applications.
| CRI | CCT | PART NUMBER | LUMINOUS FLUX (lm) @ 1050 mA | ||
|---|---|---|---|---|---|
| BIN | MIN | MAX | |||
| 70+ | 2700K | SPHWHTL3DA0CF4W☆U6 | U2 V2 W2 |
420 440 460 |
440 460 480 |
| SPHWHTL3DA0CF4W☆V6 | V2 W2 Y2 |
440 460 480 |
460 480 500 |
||
| 3000K | SPHWHTL3DA0CF4V☆W6 | W2 Y2 Z2 |
460 480 500 |
480 500 520 |
|
| SPHWHTL3DA0CF4V☆Y6 | Y2 Z2 12 |
480 500 520 |
500 520 540 |
||
| 3500K | SPHWHTL3DA0CF4U☆W6 | W2 Y2 Z2 |
460 480 500 |
480 500 520 |
|
| 4000K | SPHWHTL3DA0CF4T☆Y6 | Y2 Z2 12 |
480 500 520 |
500 520 540 |
|
| 5000K | SPHWHTL3DA0CF4R◇Y6 | Y2 Z2 12 |
480 500 520 |
500 520 540 |
|
| SPHWHTL3DA0CF4R◇Z6 | Z2 12 22 |
500 520 540 |
520 540 560 |
||
| 5700K | SPHWHTL3DA0CF4Q◇Y6 | Y2 Z2 12 |
480 500 520 |
500 520 540 |
|
| 6500K | SPHWHTL3DA0CF4P◇Y6 | Y2 Z2 12 |
480 500 520 |
500 520 540 |
|
| 80+ | 2700K | SPHWHTL3DA0EF4W☆S6 | S2 T2 U2 |
380 400 420 |
400 420 440 |
| SPHWHTL3DA0EF4W☆T6 | T2 U2 V2 |
400 420 440 |
420 440 460 |
||
| 3000K | SPHWHTL3DA0EF4V☆T6 | T2 U2 V2 |
400 420 440 |
420 440 460 |
|
| SPHWHTL3DA0EF4V☆U6 | U2 V2 W2 |
420 440 460 |
440 460 480 |
||
| 3500K | SPHWHTL3DA0EF4U☆T6 | T2 U2 V2 |
400 420 440 |
420 440 460 |
|
| SPHWHTL3DA0EF4U☆U6 | U2 V2 W2 |
420 440 460 |
440 460 480 |
||
| 4000K | SPHWHTL3DA0EF4T☆U6 | U2 V2 W2 |
420 440 460 |
440 460 480 |
|
| SPHWHTL3DA0EF4T☆V6 | V2 W2 Y2 |
440 460 480 |
460 480 500 |
||
| 5000K | SPHWHTL3DA0EF4R◇U6 | U2 V2 W2 |
420 440 460 |
440 460 480 |
|
| SPHWHTL3DA0EF4R◇V6 | V2 W2 Y2 |
440 460 480 |
460 480 500 |
||
| 5300K | SPHWHTL3DA0EF4QRU6 | U2 V2 W2 |
420 440 460 |
440 460 480 |
|
| SPHWHTL3DA0EF4QRV6 | V2 W2 Y2 |
440 460 480 |
460 480 500 |
||
| 5700K | SPHWHTL3DA0EF4Q◇U6 | U2 V2 W2 |
420 440 460 |
440 460 480 |
|
| SPHWHTL3DA0EF4QRV6 | V2 W2 Y2 |
440 460 480 |
460 480 500 |
||
| 6000K | SPHWHTL3DA0EF4PQU6 | U2 V2 W2 |
420 440 460 |
440 460 480 |
|
| SPHWHTL3DA0EF4PQV6 | V2 W2 Y2 |
440 460 480 |
460 480 500 |
||
| 6500K | SPHWHTL3DA0EF4P◇U6 | U2 V2 W2 |
420 440 460 |
440 460 480 |
|
| SPHWHTL3DA0EF4P◇V6 | V2 W2 Y2 |
440 460 480 |
460 480 500 |
||
| 90+ | 2700K | SPHWHTL3DA0GF4W☆M6 | M2 N2 P2 |
280 300 320 |
300 320 340 |
| SPHWHTL3DA0GF4W☆N6 | N2 P2 Q2 |
300 320 340 |
320 340 360 |
||
| 3000K | SPHWHTL3DA0GF4V☆N6 | N2 P2 Q2 |
300 320 340 |
320 340 360 |
|
| SPHWHTL3DA0GF4V☆P6 | P2 Q2 R2 |
320 340 360 |
340 360 380 |
||
| 3500K | SPHWHTL3DA0GF4U☆N6 | N2 P2 Q2 |
300 320 340 |
320 340 360 |
|
| SPHWHTL3DA0GF4U☆P6 | P2 Q2 R2 |
320 340 360 |
340 360 380 |
||
| 4000K | SPHWHTL3DA0GF4T☆P6 | P2 Q2 R2 |
320 340 360 |
340 360 380 |
|
| SPHWHTL3DA0GF4T☆Q6 | Q2 R2 S2 |
340 360 380 |
360 380 400 |
||
| 5000K | SPHWHTL3DA0GF4R◇R6 | R2 S2 T2 |
360 380 400 |
380 400 420 |
|
| SPHWHTL3DA0GF4R◇S6 | S2 T2 U2 |
380 400 420 |
400 420 440 |
||
| 5700K | SPHWHTL3DA0GF4Q◇S6 | S2 T2 U2 |
380 400 420 |
400 420 440 |
|
| 6000K | SPHWHTL3DA0GF4PQR6 | R2 S2 T2 |
360 380 400 |
380 400 420 |
|
| SPHWHTL3DA0GF4PQS6 | S2 T2 U2 |
380 400 420 |
400 420 440 |
||
