Description

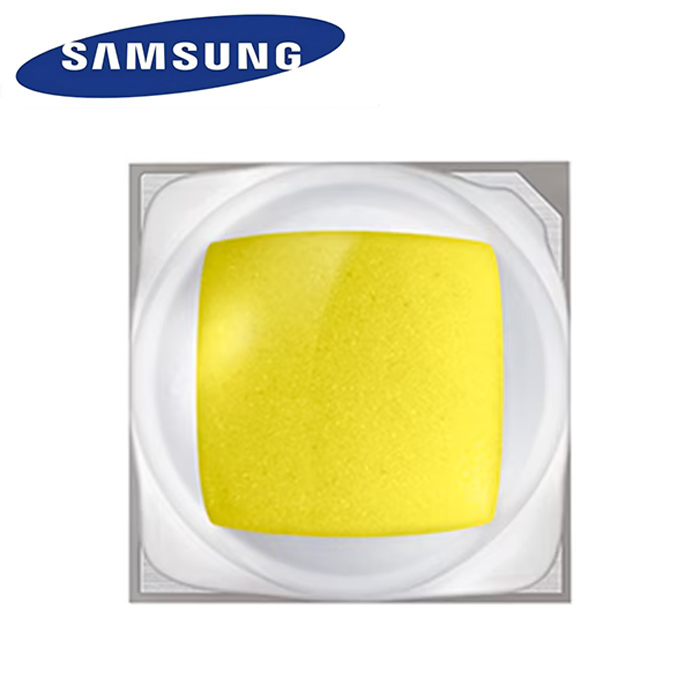

High Power LED Series 3535–LH351H-C
- Horticulture Lighting Solution
- PPF: 2.56 μmol/s @ 350 mA, 25°C
- Efficacy: 2.60 μmol/J
Features & Benefits
- Operates at a maximum current of up to 2 A
- Uniform light distribution under any beam angle
- Hot binning @ 85°C
| Item | Symbol | Rating | Unit | Condition |
|---|---|---|---|---|
| Operating Temperature | Topt | −40∼+105 | ∘C | Note 1)* |
| Storage Temperature | Tstg | −40∼+120 | ∘C | – |
| LED Junction Temperature | Tj | 150 | ∘C | – |
| Forward Current | IF | 2000 | mA | – |
| Peak Pulse Forward Current | IFP | 2600 | mA | Duty 1/10 pulse width 10ms |
| Assembly Process Temperature | – | 260 <10 | ∘C s | – |
| ESD (HBM) | – | ±8 | kV | – |
| Item | Unit | Condition | Value | |||
|---|---|---|---|---|---|---|
| IF (mA) | Tj (∘C) | Min | Typ | Max | ||
| Forward Voltage | V | 700 | 85 | 2.6 | 3.1 | |
| Reverse Voltage (@ 5 mA) | V | 25 | 11 | 15 | ||
| Thermal Resistance (junction to solder point) | ∘C/W | 25 | 3 | |||
| Beam Angle | ∘ | 700 | 25 | 128 |
| Sorting @ 700 mA (Im) | Calculated Minimum Flux² (Im) | ||||||
|---|---|---|---|---|---|---|---|
| Flux Rank | Flux Range¹ | Sub Rank | @ 350 mA | @ 700 mA | @ 1050 mA | @ 1500 mA | @ 2000 mA |
| FF | 150 ~ 210 | FB, GB, HB | 81 | 150 | 213 | 284 | 354 |
| GF | 170 ~ 230 | GB, HB, JB | 92 | 170 | 241 | 322 | 401 |
| HF | 190 ~ 250 | HB, JB, KB | 103 | 190 | 269 | 360 | 448 |
| JF | 210 ~ 270 | JB, KB, MB | 114 | 210 | 298 | 398 | 495 |
| KF | 230 ~ 290 | KB, MB, NB | 124 | 230 | 326 | 436 | 542 |
| MF | 250 ~ 310 | MB, NB, PB | 135 | 250 | 354 | 474 | 590 |
| NF | 270 ~ 330 | NB, PB, QB | 146 | 270 | 383 | 512 | 637 |
| PF | 290 ~ 350 | PB, QB, RB | 157 | 290 | 411 | 550 | 684 |
| QF | 310 ~ 370 | QB, RB, SB | 168 | 310 | 439 | 587 | 731 |
| RF | 330 ~ 390 | RB, SB, TB | 178 | 330 | 468 | 625 | 778 |
| SF | 350 ~ 410 | SB, TB, UB | 189 | 350 | 496 | 663 | 825 |
| TF | 370 ~ 430 | TB, UB, VB | 200 | 370 | 524 | 701 | 872 |
| UF | 390 ~ 450 | UB, VB, WB | 211 | 390 | 553 | 739 | 920 |
| VF | 410 ~ 470 | VB, WB, YB | 222 | 410 | 581 | 777 | 967 |
| WF | 430 ~ 490 | WB, YB, ZB | 232 | 430 | 609 | 815 | 1,014 |
