Description

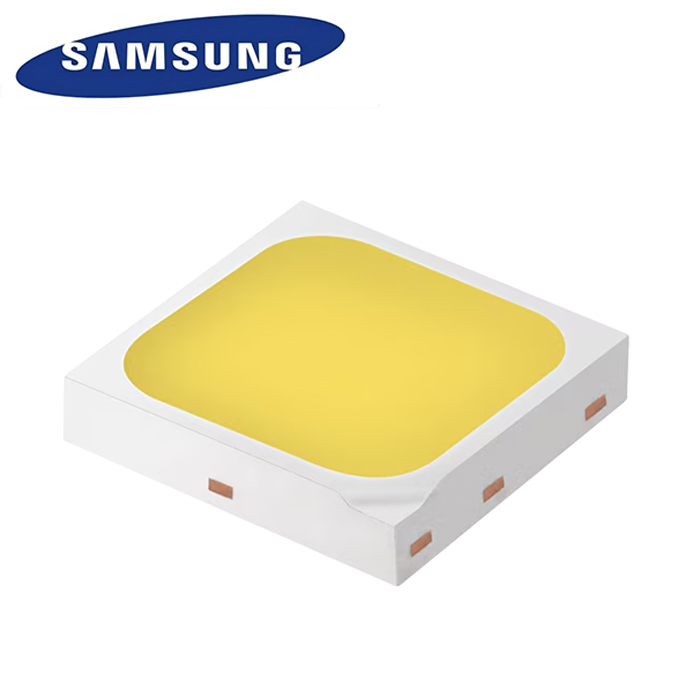

Middle Power LED Series 3030–LM301Z+ CRI 90
- 0.2 W, 3 V mid power LED
- Luminous Flux: 35.5 lm @ 65 mA
- Luminous Efficacy: 201 lm/W
- 0.3 W class middle power LED
- Mold resin for high reliability
- Standard form factor for design flexibility (3.0 × 3.0 mm)
| CRI | CCT | PART NUMBER | LUMINOUS FLUX (lm) @ 65 mA | ||
|---|---|---|---|---|---|
| BIN | MIN | MAX | |||
| 70+ | 3000K | SPMWH3326MP3WAV☆S0 | S0 | 33.0 | 36.0 |
| 3500K | SPMWH3326MP3WAU☆S0 | S0 | 34.0 | 37.0 | |
| 4000K | SPMWH3326MP3WAT☆S0 | S0 | 35.0 | 38.0 | |
| 5000K | SPMWH3326MP3WAR☆S0 | S0 | 35.0 | 38.0 | |
| 5700K | SPMWH3326MP3WAQ☆S0 | S0 | 35.0 | 38.0 | |
| 6000K | SPMWH3326MP3WAP☆S0 | S0 | 34.0 | 37.0 | |
| 80+ | 2700K | SPMWH3326MP5WAW☆S0 | S0 | 30.0 | 33.0 |
| 3000K | SPMWH3326MP5WAV☆S0 | S0 | 31.0 | 34.0 | |
| 3500K | SPMWH3326MP5WAU☆S0 | S0 | 32.0 | 35.0 | |
| 4000K | SPMWH3326MP5WAT☆S0 | S0 | 33.0 | 36.0 | |
| 5000K | SPMWH3326MP5WAR☆S0 | S0 | 33.5 | 36.5 | |
| 5700K | SPMWH3326MP5WAQ☆S0 | S0 | 33.0 | 36.0 | |
| 6500K | SPMWH3326MP5WAP☆S0 | S0 | 33.0 | 36.0 | |
| 90+ | 2700K | SPMWH3326MP7WAW☆S0 | S0 | 25.0 | 28.0 |
| 3000K | SPMWH3326MP7WAV☆S0 | S0 | 26.0 | 29.0 | |
| 3500K | SPMWH3326MP7WAU☆S0 | S0 | 27.0 | 30.0 | |
| 4000K | SPMWH3326MP7WAT☆S0 | S0 | 28.0 | 31.0 | |
| 5000K | SPMWH3326MP7WAR☆S0 | S0 | 28.0 | 31.0 | |
| 5700K | SPMWH3326MP7WAQ☆S0 | S0 | 28.0 | 31.0 | |
| 6500K | SPMWH3326MP7WAP☆S0 | S0 | 28.0 | 31.0 | |
