Description

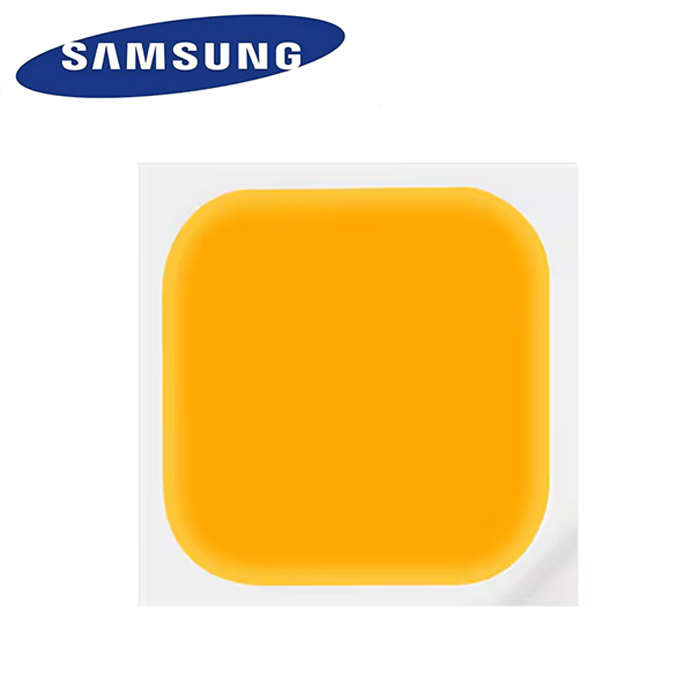

Middle Power LED Series 3030–LM302N NITE
- Relaxing Lighting Solution
- Minimization of Melanopic Ratio
- Fine Tuned-spectrum for More Relaxing Effect
- 0.9 W class middle power LED
- EMC resin for high reliability
- Standard form factor for design flexibility (3.0 × 3.0 mm)
- Human-centric lighting
| CRI | CCT | PART NUMBER | MDER | LUMINOUS FLUX (lm) @ 150 mA | ||
|---|---|---|---|---|---|---|
| BIN | MIN | MAX | ||||
| 80+ | 1800K | SPMWH3326FN5FAA☆S0 | 0.18 | S0 | 80 | 95 |
| 2200K | SPMWH3326FN5FAY☆S0 | 0.25 | S0 | 90 | 105 | |
| 2700K | SPMWH3326FN5FAW☆S0 | 0.34 | S0 | 95 | 110 | |
| 3000K | SPMWH3326FN5FAV☆S0 | 0.43 | S0 | 105 | 120 | |
| 3500K | SPMWH3326FN5FAU☆S0 | 0.51 | S0 | 110 | 125 | |
| 4000K | SPMWH3326FN5FAT☆S0 | 0.58 | S0 | 110 | 125 | |
3030 LEDs
