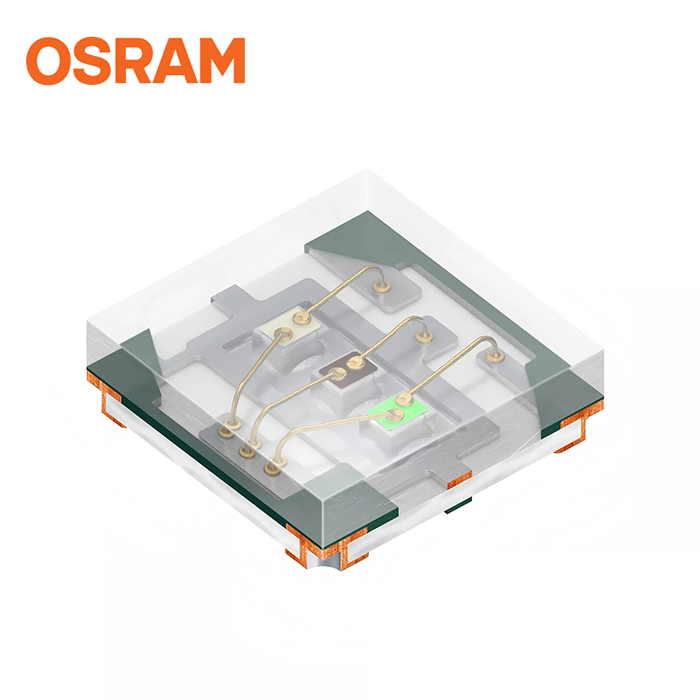

Multi Chip LED LTRB R37G
This device was designed for low profile consumer applications. The 4-pin common anode technology emits an additive mixture of red, green and blue color by independent driving of each chip. Very compact package size and low z-height to support highly integrated consumer applications in displays or accents. Device is white binned.
Applications
– Backlighting (Smartphone, Tablet)
– Electronic Equipment
– Mood Lighting
– White Goods
Features
– Package: SMT package, epoxy resin
– Chip technology: InGaAlP / InGaN on Sapphire
– Typ. Radiation: 120° (Lambertian emitter)
– Color: λdom = 530 nm (● true green); λdom = 623 nm (● red); λdom = 472 nm (● blue)
– ESD: 500 V acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 1B)
– Color: x = 0.249, y = 0.208. acc. to CIE 1931 (white)
– Luminous Intensity: 159…280 mcd (white), typ. 130 mcd (true green), typ. 45 mcd (red), typ. 25 mcd (blue)
| Emission Color | True Green (513-545 nm)
Red (612-630 nm) Blue (450-480 nm) |
Operating Temperature | Top Minimum -40°C
Top Maximum 85°C |
| Power | 0.0054 W (Low)
0.0038 W (Low) 0.0056 W (Low) |
Beam Angle | ∢ Typical 120° |
| Dimensions | l Typical 1.0 mm w Typical 1.0 mm h Typical 0.25 mm |
Brightness | Typical ΦV: 0.853 lm Typical IV: 0.22 cd Typical ΦE: 1.77 mW Typical IE: 0.456 mW/sr |
| Product Category | Description | Order Code |
|---|---|---|
| LTRBR37G-4R4S-0125 | Iv = N/A (IF = 2 mA) ● Iv = 159 … 280 mcd (IF = 2 mA) |
Q65112A6714 |
