Description

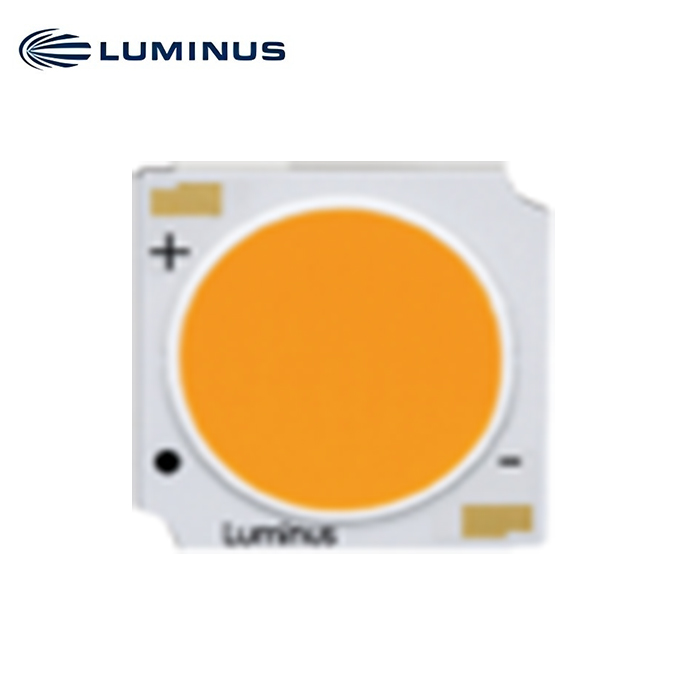

LUX Series
Highest efficacy at typical >160lm/W, general lighting, directional source delivering high lumen efficacy from the largest selection of Light Emitting Surface (LES), operating power range, and color quality.
APPLICATIONS
- Retail/Hospitality/Commercial
- Track/Spot/Bulb
- Architectural/Museums/Exhibits
FEATURES
- Typical efficacy >160 LPW, 3000K 90CRI, highest reach 180LPW
- Complete range of LES sizes and lumen outputs
- AccuWhiteTM Color rendering to 97CRI typ.
- SensusTM and Xtreme SensusTM Pure White
- UL and IEC qualified
- At least 90 CRI for whole series products
BENEFITS
- Enhanced efficacy reduces power consumption
- Source optimized for beam characteristics and optics selection
- Sources to achieve highest color rendering and optimum appearance
- Pure white color rendering with enhanced color saturation
| Product Image | Product Family | LES (mm) | Substrate Size (mm) | Power Range (W) | Flux Range @ 3000K, 90CRI |
|---|---|---|---|---|---|
 |
CXM-4 | 4.5 | 13.5 * 13.5 | 4.0 – 7.7 | 505 – 810 |
 |
CXM-6 | 6.3 | 13.5 * 13.5 | 5.0 – 7.5 | 770 – 1230 |
 |
CLM-9 | 9.8 | 13.5 * 13.5 (TC) 15.0 * 15.0 (TA) |
8.2 – 15.0 | 1300 – 2080 |
 |
CXM-9 | 9.8 | 13.5 * 13.5 (TC) 15.0 * 15.0 (TA) |
12.0 – 19.0 | 1825 – 2550 |
 |
CXM-11 | 11.6 | 19.0 * 19.0 (TC) 18.5 * 18.5 (TA) |
15.0 – 22.7 | 2350 – 3300 |
 |
CLM-14 | 14.5 | 19.0 * 19.0 (TC) 18.5 * 18.5 (TA) |
16.5 – 30.3 | 2660 – 4260 |
 |
CXM-14 | 14.5 | 19.0 * 19.0 (TC) 18.5 * 18.5 (TA) |
24.1 – 34.3 | 3795 – 4930 |
 |
CXM-18 | 17.5 | 28.0 * 28.0 | 26.5 – 46.0 | 4505 – 7210 |
 |
CLM-22 | 22.0 | 28.0 * 28.0 | 35.2 – 60.0 | 5945 – 9510 |
 |
CXM-22 | 22.0 | 28.0 * 28.0 | 52.0 – 90.5 | 8880 – 14200 |
